MPQ6615GQKTE-AEC1-Z
ActiveMonolithic Power Systems Inc.
45V, 9M H-BRIDGE MOTOR DRIVER AE
MPQ6615GQKTE-AEC1-Z
ActiveMonolithic Power Systems Inc.
45V, 9M H-BRIDGE MOTOR DRIVER AE
Description
General part information
MPQ6615GQKTE-AEC1-Z

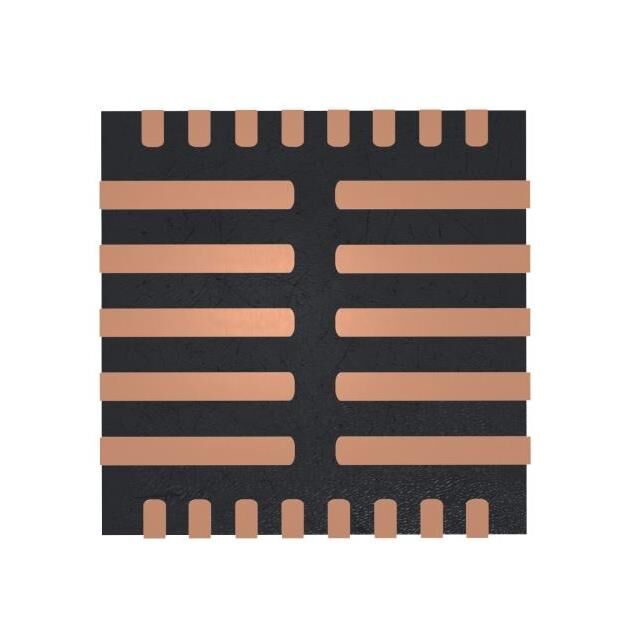

Bipolar Motor Driver Power MOSFET 26-TQFN (6x6)
Technical Specifications
Parameters and characteristics for this part
| Specification | MPQ6615GQKTE-AEC1-Z |
|---|---|
| Applications | General Purpose |
| Current - Output | 8 A |
| Function | Control and Power Stage, Driver - Fully Integrated |
| Grade | Automotive |
| Half-Bridge Count | 2 |
| Motor Type - AC, DC | Brushed DC |
| Motor Type - Stepper | Bipolar |
| Mounting Type | Wettable Flank, Surface Mount |
| Output Configuration | Half Bridge |
| Package / Case | 26-WQFN |
| Package Length | 6 mm |
| Package Name | 26-TQFN |
| Package Width | 6 mm |
| Qualification | AEC-Q100 |
| Technology | Power MOSFET |
| Voltage - Load (Max) | 40 V |
| Voltage - Load (Min) | 4.75 V |
| Voltage - Supply (Maximum) | 40 VAC |
| Voltage - Supply (Minimum) | 4.75 V |
