012328110
ActiveRose Enclosures
BOX ALUM GRAY 11.02"L X 9.06"W
012328110
ActiveRose Enclosures
BOX ALUM GRAY 11.02"L X 9.06"W
Description
General part information
012328110

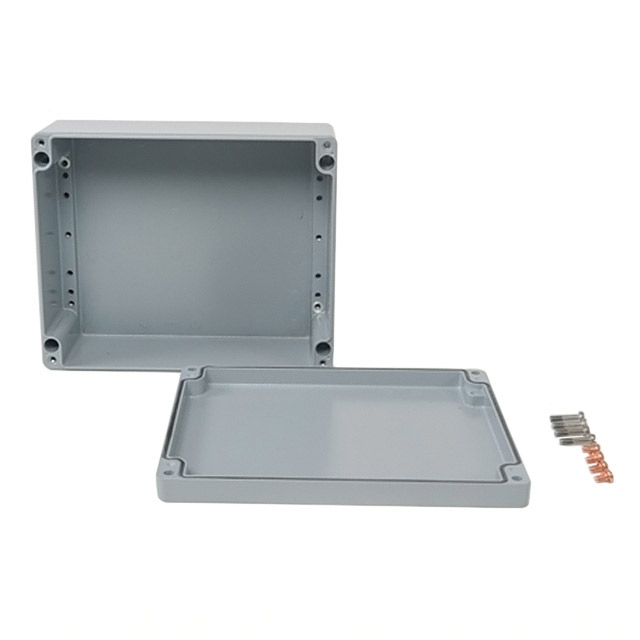

Box Metal, Aluminum Gray Cover Included 11.024" L x 9.055" W (280.00mm x 230.00mm) X 4.370" (111.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 012328110 |
|---|---|
| Area (L x W) | 99.8 in² |
| Color | Gray |
| Container Type | Box |
| Design | Cover Included |
| Features | Watertight |
| Height | 4.37 in |
| Material | Metal, Aluminum |
| Ratings | UL-508, NEMA 1, 2, 4X, IP66, 4 |
| Size / Dimension Length | 11.024 in |
| Size / Dimension Width | 9.055 in |
| Thickness | 0.157 in |
| Weight | 8.5 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
