NTCLE201E3302SBA
ActiveVishay Dale
THERMISTOR, NTC, 3977K, 3 KOHM ROHS COMPLIANT: YES
NTCLE201E3302SBA
ActiveVishay Dale
THERMISTOR, NTC, 3977K, 3 KOHM ROHS COMPLIANT: YES
Description
General part information
NTCLE201E3302SBA

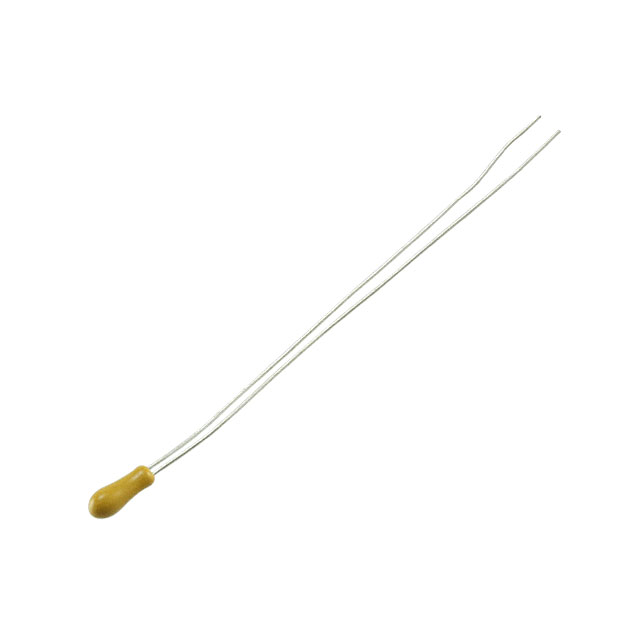

NTC Thermistor 3k Bead
Technical Specifications
Parameters and characteristics for this part
| Specification | NTCLE201E3302SBA |
|---|---|
| B Value (25/85) | 3977 K |
| B Value Tolerance | 0.75 % |
| Grade | Automotive |
| Length - Lead Wire | 1.5 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Bead |
| Power - Max | 100 mW |
| Qualification | AEC-Q200 |
| Resistance (Ohms) | 3 kOhm |
| Resistance Tolerance (%) | 2.18 % |
