Description
General part information

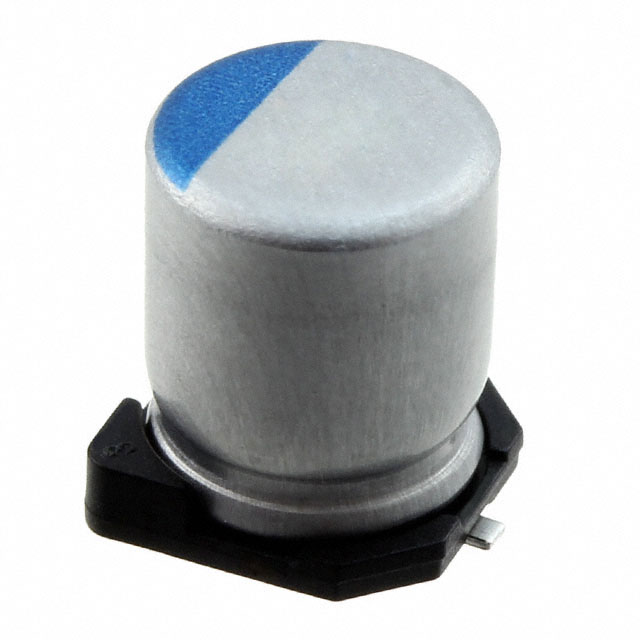

PCR1D151MCL4GS
150 µF 20 V Aluminum - Polymer Capacitors Radial, Can - SMD 25mOhm 4000 Hrs @ 125°C
Technical Specifications
Parameters and characteristics for this part
| Specification | PCR1D151MCL4GS |
|---|---|
| Applications | Automotive |
| Capacitance | 150 µF |
| ESR (Equivalent Series Resistance) | 25 mOhm |
| Height - Seated (Max) | 0.315 in |
| Lifetime | 4000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial, Can - SMD |
| Ratings | AEC-Q200 |
| Ripple Current | 1.7 A |
| Size / Dimension Diameter | 0.248 in |
| Surface Mount Land Length | 0.26 in |
| Surface Mount Land Width | 0.26 in |
| Tolerance | 20 % |
| Type | Polymer |
| Voltage - Rated | 20 V |
