Description
General part information

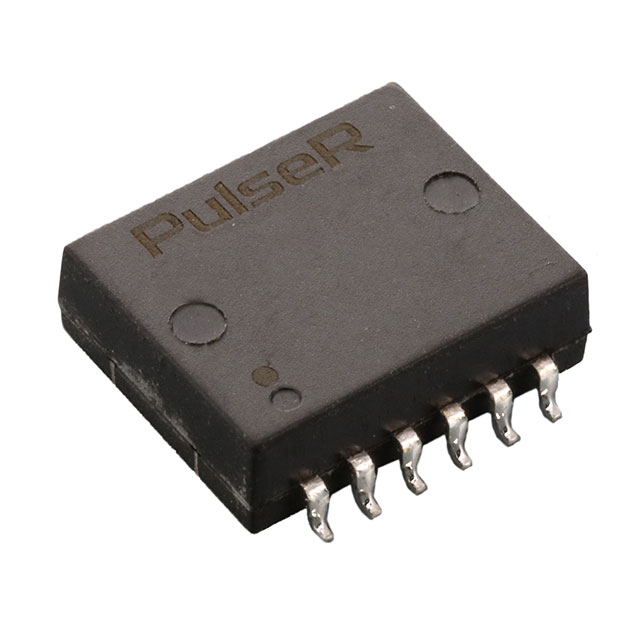

100B-1018T
LAN 10/100 Base-T Pulse Transformer 1CT:1CT Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 100B-1018T |
|---|---|
| Height - Seated (Max) | 0.18 in |
| Mounting Type | Surface Mount |
| Size / Dimension Length | 0.583 in |
| Size / Dimension Width | 0.47 in |
| Transformer Type | LAN 10/100 Base-T |
| Turns Ratio - Primary | 1 |
| Turns Ratio - Secondary | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
