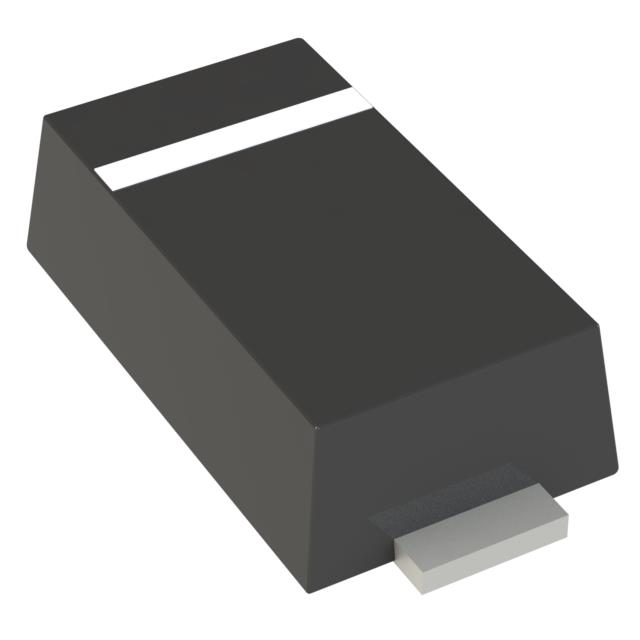

SMH26A-TP
ActiveMCC (Micro Commercial Components)
TVS DIODE 26VWM 42.1VC SOD123HL
SMH26A-TP
ActiveMCC (Micro Commercial Components)
TVS DIODE 26VWM 42.1VC SOD123HL
Description
General part information
SMH26A-TP
42.1V Clamp 4.75A Ipp Tvs Diode Surface Mount SOD-123HL
Technical Specifications
Parameters and characteristics for this part
| Specification | SMH26A-TP |
|---|---|
| Applications | General Purpose |
| Current - Peak Pulse | 4.75 A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | SOD-123H |
| Package Name | SOD-123HL |
| Power - Peak Pulse | 200 W |
| Power Line Protection | No |
| Type | Zener |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 28.9 V |
| Voltage - Clamping (Max) | 42.1 V |
| Voltage - Reverse Standoff (Typ) | 26 V |
