Description
General part information
PRT-16890

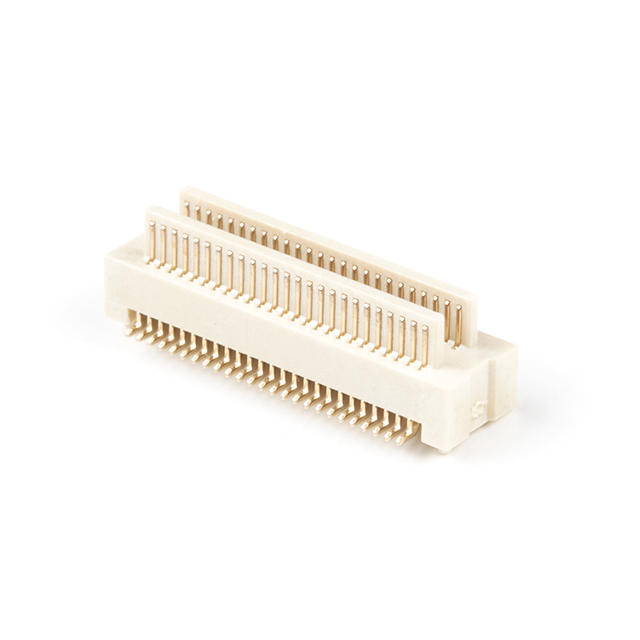

50 Position Male Connector Non Specified - Dual Edge Gold 0.020" (0.50mm) White
Technical Specifications
Parameters and characteristics for this part
| Specification | PRT-16890 |
|---|---|
| Card Type | Non Specified, Dual Edge |
| Color | White |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Features | Board Guide, Pick and Place |
| Gender | Male |
| Material - Insulation | LCP, Liquid Crystal Polymer |
| Mounting Type | Surface Mount |
| Number of Positions | 50, 25 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -20 °C |
| Pitch | 0.02 in |
| Read Out | Dual |
| Termination | Solder |
