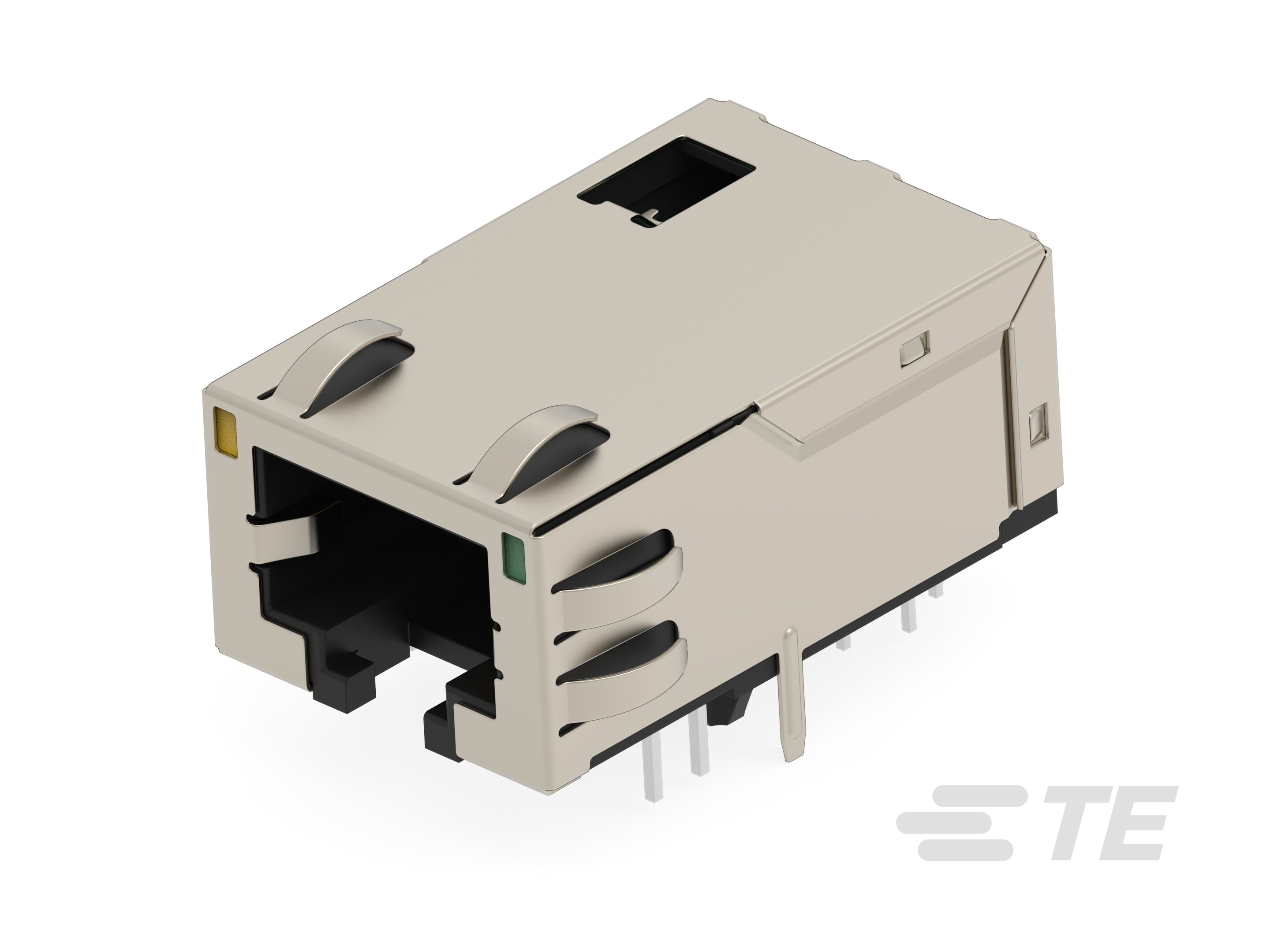

RJ45 W/MAGNET 1X1 10G LED PLATING T 50-2489048-1

2489048-1

Active
TE Connectivity AMP Connectors

MODULAR CONNECTOR, G/YG LED, RJ45 JACK, 1 X 1 (PORT), 8P8C, CAT6A, THROUGH HOLE MOUNT

Find alt
RJ45 W/MAGNET 1X1 10G LED PLATING T 50-2489048-1

2489048-1

Active
TE Connectivity AMP Connectors

MODULAR CONNECTOR, G/YG LED, RJ45 JACK, 1 X 1 (PORT), 8P8C, CAT6A, THROUGH HOLE MOUNT

Find alt

Description

General part information

2489048-1

RJ45 Connector, Single Port, 1 x 1, Jack, Shielded, Cat 6A, Standard - Latch Down, 8 Position, Low Profile, Through Hole - Solder, Right Angle

Technical Specifications

Parameters and characteristics for this part

Specification2489048-1
ApplicationsAutoMDIX, 10G Base-T
Connector TypeRJ45
Contact FinishGold
Contact MaterialPhosphor Bronze
FeaturesBoard Guide
Height Above Board0.476 in
LED ColorYellow - Green, Green
Mounting TypeThrough Hole
Number of Cores per Jack8
Number of Ports1
Number of Rows1
Operating Temperature (Max)70 °C
Operating Temperature (Min)0 °C
Orientation Angle90 °
Orientation DirectionRight
ShieldingEMI Finger, Shielded
Tab DirectionDown
TerminationSolder
