Description
General part information

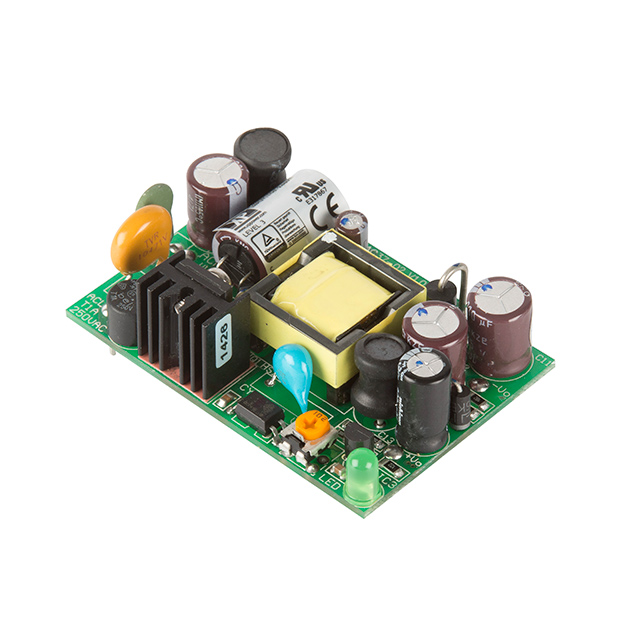

CU10-00
Open Frame AC DC Converters 1 Output 3.3V 2.5A 85 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | CU10-00 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Current - Output (Max) | 2.5 A |
| Efficiency | 65 % |
| Line Regulation | 0.5 % |
| Load Regulation (Percent) | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | 0 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 8.25 W |
| Size / Dimension Height | 0.91 in |
| Size / Dimension Length | 2.56 in |
| Size / Dimension Width | 1.77 in |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Output 1 | 3.3 V |
