630W3W3-640-2NB

Active

EDAC Inc.

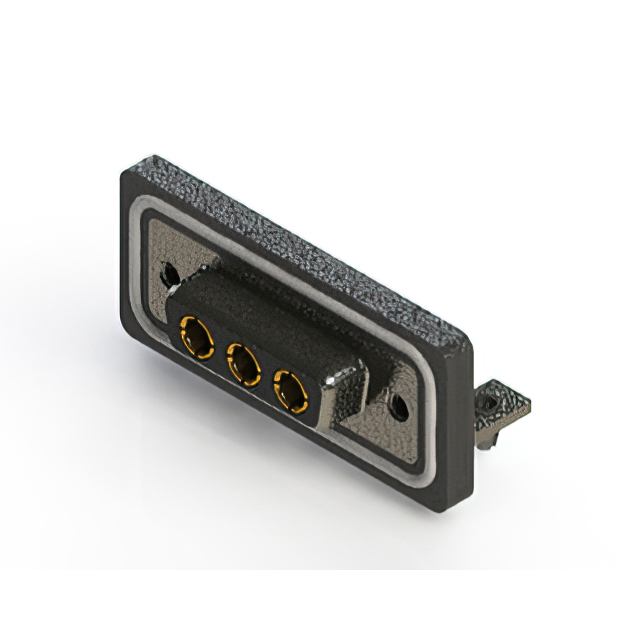

CONN D-SUB RCPT 3POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630W3W3-640-2NB

Active

EDAC Inc.

CONN D-SUB RCPT 3POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630W3W3-640-2NB

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	20 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Mounting Brackets, Shielded, Board Lock
Flange Feature	Housing/Shell (M3)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	3
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	2 (DA, A)
Shell Size, Connector Layout [custom]	3W3
Termination	Solder
Voltage Rating	125 VDC

630W3W Series

...

Part	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Connector Style	Contact Finish	Number of Positions	Ingress Protection	Connector Type	Shell Material, Finish	Voltage Rating	Features	Color	Number of Rows	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Flange Feature	Mounting Type	Current Rating (Amps)	Material Flammability Rating	Termination	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness
EDAC Inc. 630W3WK3640-3NB	2 (DA A) - 3WK3	0.76 Ám	30 Áin	Copper Alloy	Combo D-Sub	Gold	3	IP67 - Dust Tight Waterproof	Female Sockets Male Pins Plug	Nickel Plated Steel	125 VDC	Board Lock Mounting Brackets Shielded	Black	1	Power	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (M3)	Panel Mount Right Angle Through Hole	30 A	UL94 V-0	Solder
EDAC Inc. 630W3W3-640-3N4		0.76 Ám	30 Áin	Copper Alloy	Combo D-Sub	Gold	3	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	Nickel Plated Steel	125 VDC	Mounting Brackets Shielded	Black	1	Power	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (4-40)	Panel Mount Right Angle Through Hole	30 A	UL94 V-0	Solder	2 (DA A)	3W3
EDAC Inc. 630W3W3-640-3N2		0.76 Ám	30 Áin	Copper Alloy	Combo D-Sub	Gold	3	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	Nickel Plated Steel	125 VDC	Shielded	Black	1	Power	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (4-40)	Panel Mount Right Angle Through Hole	30 A	UL94 V-0	Solder	2 (DA A)	3W3
EDAC Inc. 630W3WK3240-2NC	2 (DA A) - 3WK3			Copper Alloy	Combo D-Sub	Gold	3	IP67 - Dust Tight Waterproof	Female Sockets Male Pins Plug	Nickel Plated Steel	125 VDC	Mounting Brackets Shielded	Black	1	Power	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (M3)	Through Hole Right Angle	20 A	UL94 V-0	Solder			Flash
EDAC Inc. 630W3W3-340-4N2		0.38 µm	15 µin	Copper Alloy	Combo D-Sub	Gold	3	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	Nickel Plated Steel	125 VDC	Shielded	Black	1	Power	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (4-40)	Panel Mount Right Angle Through Hole	40 A	UL94 V-0	Solder	2 (DA A)	3W3
EDAC Inc. 630W3WK3340-2N3	2 (DA A) - 3WK3	0.38 µm	15 µin	Copper Alloy	Combo D-Sub	Gold	3	IP67 - Dust Tight Waterproof	Female Sockets Male Pins Plug	Nickel Plated Steel	125 VDC	Board Lock Mounting Brackets Shielded	Black	1	Power	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (4-40)	Panel Mount Right Angle Through Hole	20 A	UL94 V-0	Solder
EDAC Inc. 630W3W3-340-2NC		0.38 µm	15 µin	Copper Alloy	Combo D-Sub	Gold	3	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	Nickel Plated Steel	125 VDC	Mounting Brackets Shielded	Black	1	Power	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (M3)	Through Hole Right Angle	20 A	UL94 V-0	Solder	2 (DA A)	3W3
EDAC Inc. 630W3W3-340-4NB		0.38 µm	15 µin	Copper Alloy	Combo D-Sub	Gold	3	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	Nickel Plated Steel	125 VDC	Board Lock Mounting Brackets Shielded	Black	1	Power	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (M3)	Panel Mount Right Angle Through Hole	40 A	UL94 V-0	Solder	2 (DA A)	3W3
EDAC Inc. 630W3W3-640-2NB		0.76 Ám	30 Áin	Copper Alloy	Combo D-Sub	Gold	3	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	Nickel Plated Steel	125 VDC	Board Lock Mounting Brackets Shielded	Black	1	Power	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (M3)	Panel Mount Right Angle Through Hole	20 A	UL94 V-0	Solder	2 (DA A)	3W3
EDAC Inc. 630W3WK3140-4N4	2 (DA A) - 3WK3	0.127 µm	5 µin	Copper Alloy	Combo D-Sub	Gold	3	IP67 - Dust Tight Waterproof	Female Sockets Male Pins Plug	Nickel Plated Steel	125 VDC	Mounting Brackets Shielded	Black	1	Power	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (4-40)	Panel Mount Right Angle Through Hole	40 A	UL94 V-0	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 19.90

Description

General part information

630W3W Series

3 (Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
