LCCA30532-FT10
ActivePasternack

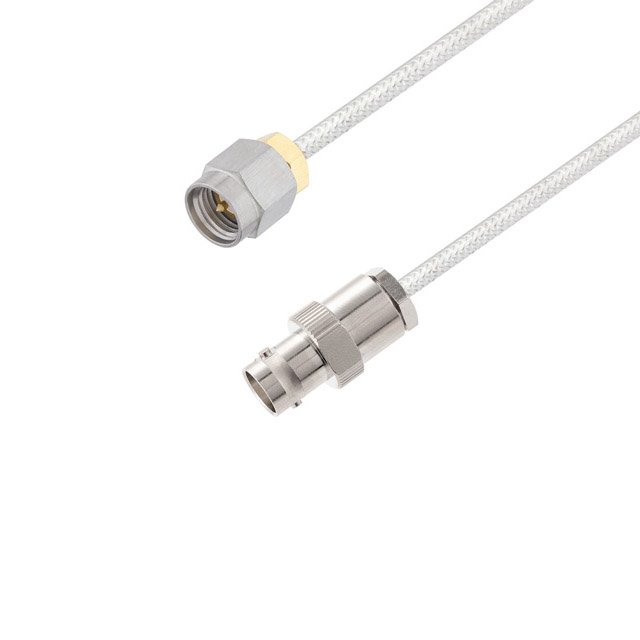

SMA M TO BNC F USING LC085TB, 10
LCCA30532-FT10
ActivePasternack
SMA M TO BNC F USING LC085TB, 10
Description
General part information
LCCA30532-FT10
Cable Assembly Coaxial
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30532-FT10 |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LC085TB |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 1 GHz |
| Length | 120 in |
| Overall Impedance | 50 Ohms |
| Style | SMA, BNC |
