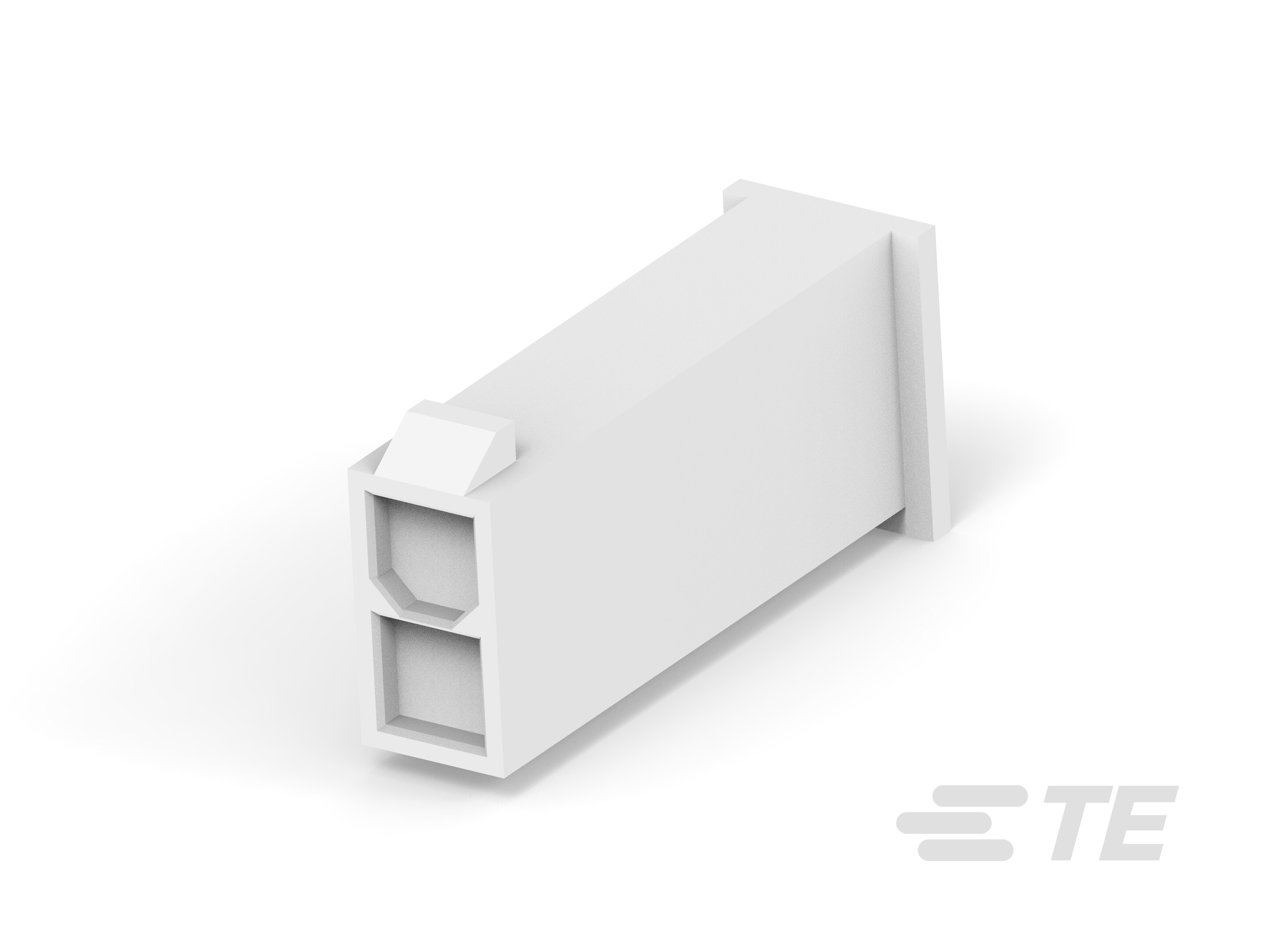

2296206-2
ActiveTE Connectivity AMP Connectors
CONN HOUSING PL 2 POS 4.2MM CRIMP ST CABLE MOUNT NATURAL
2296206-2
ActiveTE Connectivity AMP Connectors
CONN HOUSING PL 2 POS 4.2MM CRIMP ST CABLE MOUNT NATURAL
Description
General part information
2296206-2
2 Position, Plug, Housing, Wire-to-Wire, UL 94V-0, 4.2 mm [.165 in] Centerline, 2 Row, Wire & Cable, Power, Cable Mount (Free-Hanging)
Technical Specifications
Parameters and characteristics for this part
| Specification | 2296206-2 |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Insulation Material | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Row Spacing | 0.165 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
