Description

General part information

321892

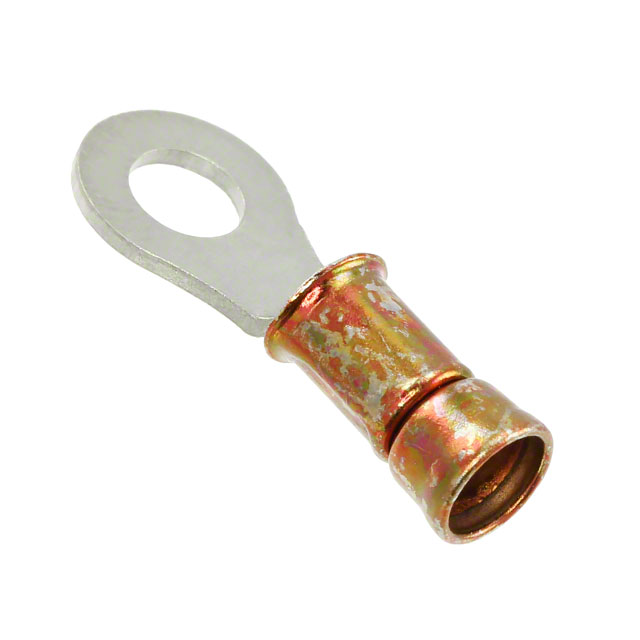

Closed Ring Tongue Terminal, 22 – 16 AWG, #6 / M3.5 Stud, 3.68 mm [.145 in] Stud Diameter, Closed Barrel, Straight, STRATO-THERM DIAMOND GRIP

Technical Specifications

Parameters and characteristics for this part

Specification321892
ColorOrange
Contact MaterialNickel
FeaturesHigh Temperature, Serrated Termination
InsulationNon-Insulated
Insulation Diameter (Max)0.14 in
Insulation Diameter (Min)0.105 in
Length - Overall0.749 in
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size6 Stud
Terminal TypeCircular
TerminationCrimp
Thickness0.031 in
Width - Outer Edges0.281 in
Wire Gauge (AWG) (Max)22 AWG
Wire Gauge (AWG) (Min)16 AWG
