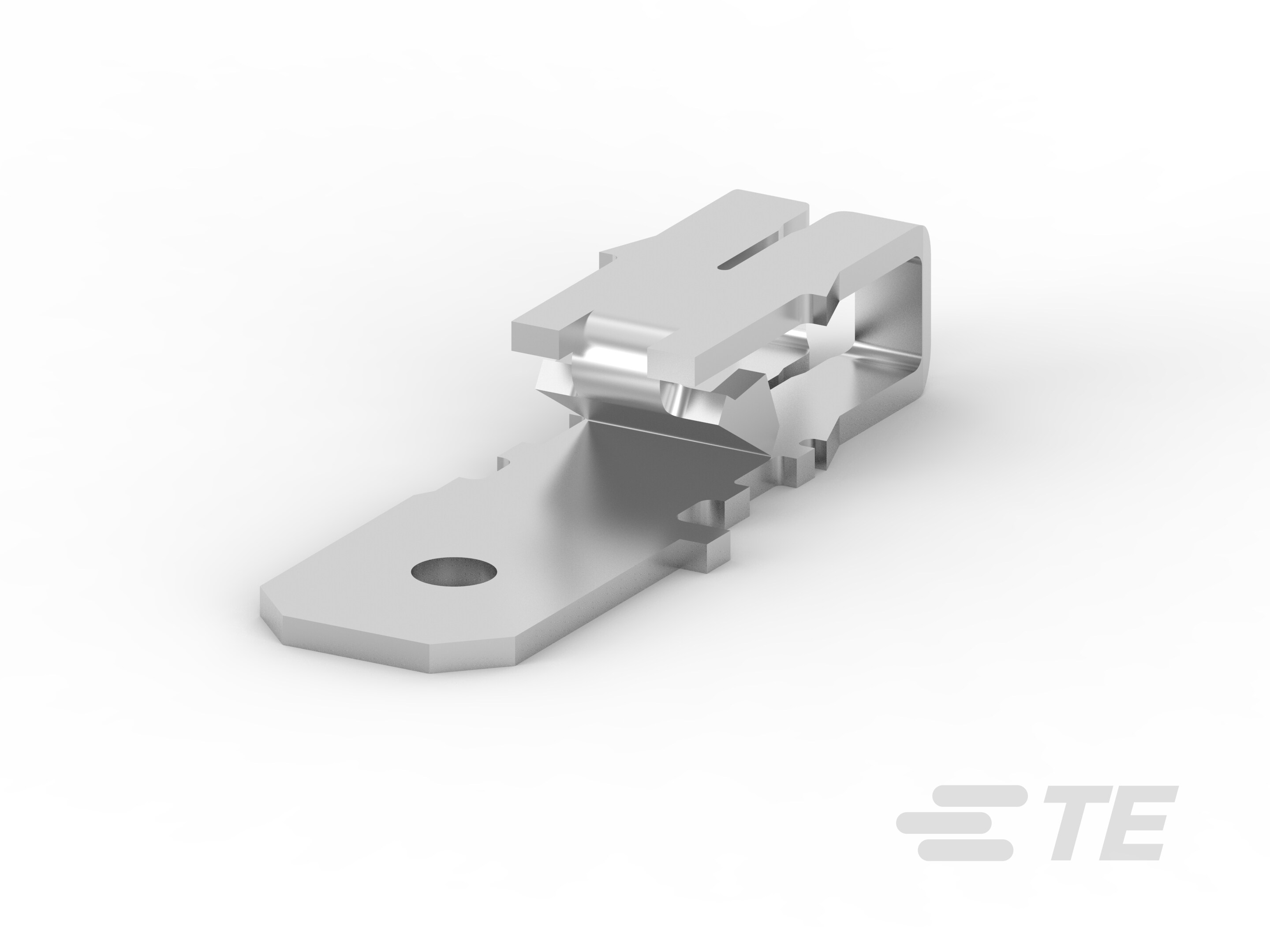

STD MAG-MATE .187 POKE-IN TAB-2825382-1

2825382-1

Active
TE Connectivity AMP Connectors

SPECIALTY TERMINAL, MAG-MATE SERIES, IDC / IDT, MAGNET WIRE TERMINAL

Find alt
STD MAG-MATE .187 POKE-IN TAB-2825382-1

2825382-1

Active
TE Connectivity AMP Connectors

SPECIALTY TERMINAL, MAG-MATE SERIES, IDC / IDT, MAGNET WIRE TERMINAL

Find alt

Description

General part information

2825382-1

Poke-In, 4.75 mm [.187 in] Tab Width, 25 – 24 AWG Aluminum Wire, .45 – .5 mm Aluminum Wire, 20 – 18 AWG Lead Wire, MAG-MATE, Magnet Wire Terminals

Technical Specifications

Parameters and characteristics for this part

Specification2825382-1
Contact FinishTin
Contact TerminationCrimp
Pin or SocketSocket
TypeStamped
Wire Gauge (AWG) (Max)27 AWG
Wire Gauge (AWG) (Min)24 AWG
