FMSW6229
ActiveFairview Microwave

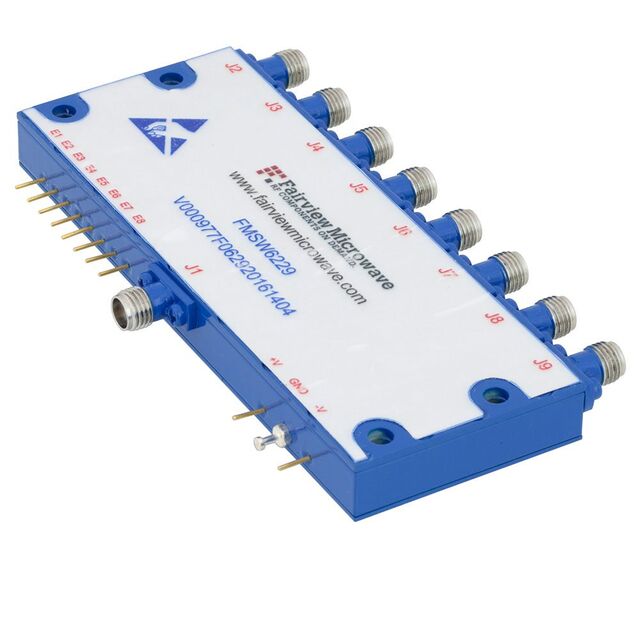

PIN DIODE SWITCH 2.92MM SP8T 40G
FMSW6229
ActiveFairview Microwave
PIN DIODE SWITCH 2.92MM SP8T 40G
Description
General part information
FMSW6229
RF Switch IC General Purpose SP8T 50Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | FMSW6229 |
|---|---|
| Circuit | SP8T |
| Frequency Range (Max) | 40 GHz |
| Frequency Range (Min) | 500 MHz |
| Impedance | 50 Ohm |
| Insertion Loss | 9 dB |
| Isolation (Min) | 45 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| RF Type | General Purpose |
| Test Frequency | 40 GHz |
| Topology | Reflective |
| Voltage - Supply | -5 V, 5 VDC |
| Voltage - Supply | 5V, -5V |
