LCCA30435-FT2
ActivePasternack
SMA FBH TO TNC MRA USING LC141TB
LCCA30435-FT2
ActivePasternack
SMA FBH TO TNC MRA USING LC141TB
Description
General part information
LCCA30435-FT2

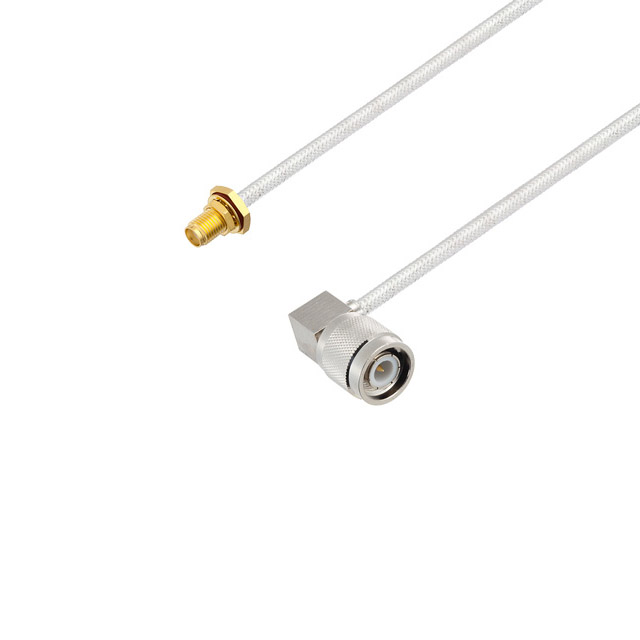

Cable Assembly Coaxial SMA to TNC LC141TB 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30435-FT2 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | Right Angle, TNC Plug |
| 2nd Connector Mounting Type | Right Angle, Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LC141TB |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 24 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, TNC |
