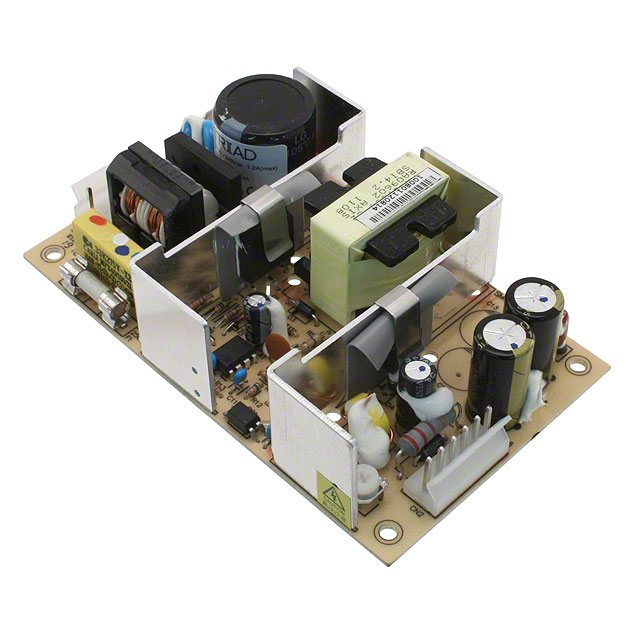

ALS50-SERIES

ALS50-5

Active
Triad Magnetics

AC/DC OPEN FRAME POWER SUPPLY (PSU), 1 OUTPUT, 45 W, 90V AC TO 264V AC, ADJUSTABLE, FIXED, 5 V

Find alt
ALS50-SERIES

ALS50-5

Active
Triad Magnetics

AC/DC OPEN FRAME POWER SUPPLY (PSU), 1 OUTPUT, 45 W, 90V AC TO 264V AC, ADJUSTABLE, FIXED, 5 V

Find alt

Description

General part information

ALS50-5

Open Frame AC DC Converters 1 Output 5V 90 ~ 260 VAC, 120 ~ 370 VDC Input

Technical Specifications

Parameters and characteristics for this part

SpecificationALS50-5
ApplicationsITE (Commercial)
Approval AgencyTUV, UR
Current - Output 19 A
Efficiency70 %
FeaturesDC Input Capable, Universal Input, Adjustable Output
Minimum Load RequiredNo
Mounting TypeChassis Mount
Number of Outputs1
Operating Temperature (Max)55 °C
Operating Temperature (Min)0 °C
Power (Watts)50 W
Size / Dimension Height1.4 in
Size / Dimension Length5 in
Size / Dimension Width3 in
TypeOpen Frame
Voltage - Input (AC) Maximum260 VAC
Voltage - Input (AC) Minimum90 V
Voltage - Input (DC) Maximum370 V
Voltage - Input (DC) Minimum120 V
Voltage - Isolation3 kV
Voltage - Output 15 V
