Part	Insulation Color	Fastening Type	Operating Temperature (Min)	Operating Temperature (Max)	Contact Material	Number of Positions Loaded	Features	Insulation Material	Mounting Type	Current Rating	Pitch - Mating	Insulation Height	Connector Type	Contact Finish Thickness - Mating	Contact Type	Row Spacing - Mating	Contact Shape	Number of Positions	Contact Finish - Mating	Material Flammability Rating	Contact Finish - Post	Termination	Number of Rows	Style	Shrouding	Voltage Rating	Applications	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 794619-6	Black	Locking Ramp	-40 °C	105 °C	Brass	All	Board Lock	Nylon Polyamide (PA)	Right Angle Through Hole	Varies by Wire Gauge	0.118 in	0.29 in	Header	15 µin	Male Pin	0.118 in	Square	6	Gold Gold-Palladium	UL94 V-0	Tin-Lead	Solder	2	Board Cable/Wire	Shrouded - 4 Wall	250 V	General Purpose	100 Ąin
TE Connectivity AMP Connectors 2-794619-0	Black	Locking Ramp	-40 °C	105 °C	Brass	All	Board Lock	Nylon Polyamide (PA)	Right Angle Through Hole	Varies by Wire Gauge	0.118 in	0.29 in	Header	15 µin	Male Pin	0.118 in	Square	20	Gold Gold-Palladium	UL94 V-0	Tin-Lead	Solder	2	Board Cable/Wire	Shrouded - 4 Wall	250 V	General Purpose	100 Ąin
TE Connectivity AMP Connectors 1-794619-0	Black	Locking Ramp	-40 °C	105 °C	Brass	All	Board Lock	Nylon Polyamide (PA)	Right Angle Through Hole	Varies by Wire Gauge	0.118 in	0.29 in	Header	15 µin	Male Pin	0.118 in	Square	10	Gold Gold-Palladium	UL94 V-0	Tin-Lead	Solder	2	Board Cable/Wire	Shrouded - 4 Wall	250 V	General Purpose	100 Ąin
TE Connectivity AMP Connectors 794619-2	Black	Locking Ramp	-40 °C	105 °C	Brass	All	Board Lock	Nylon Polyamide (PA)	Right Angle Through Hole	Varies by Wire Gauge		0.29 in	Header	15 µin	Male Pin	0.118 in	Square	2	Gold Gold-Palladium	UL94 V-0	Tin-Lead	Solder	2	Board Cable/Wire	Shrouded - 4 Wall	250 V	General Purpose	100 Ąin
TE Connectivity AMP Connectors 794619-8	Black	Locking Ramp	-40 °C	105 °C	Brass	All	Board Lock	Nylon Polyamide (PA)	Right Angle Through Hole	Varies by Wire Gauge	0.118 in	0.29 in	Header	15 µin	Male Pin	0.118 in	Square	8	Gold Gold-Palladium	UL94 V-0	Tin-Lead	Solder	2	Board Cable/Wire	Shrouded - 4 Wall	250 V	General Purpose	100 Ąin
TE Connectivity AMP Connectors 2-794619-4	Black	Locking Ramp	-40 °C	105 °C	Brass	All	Board Lock	Nylon Polyamide (PA)	Right Angle Through Hole	Varies by Wire Gauge	0.118 in	0.29 in	Header	15 µin	Male Pin	0.118 in	Square	24 pos	Gold Gold-Palladium	UL94 V-0	Tin-Lead	Solder	2	Board Cable/Wire	Shrouded - 4 Wall	250 V	General Purpose	100 Ąin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

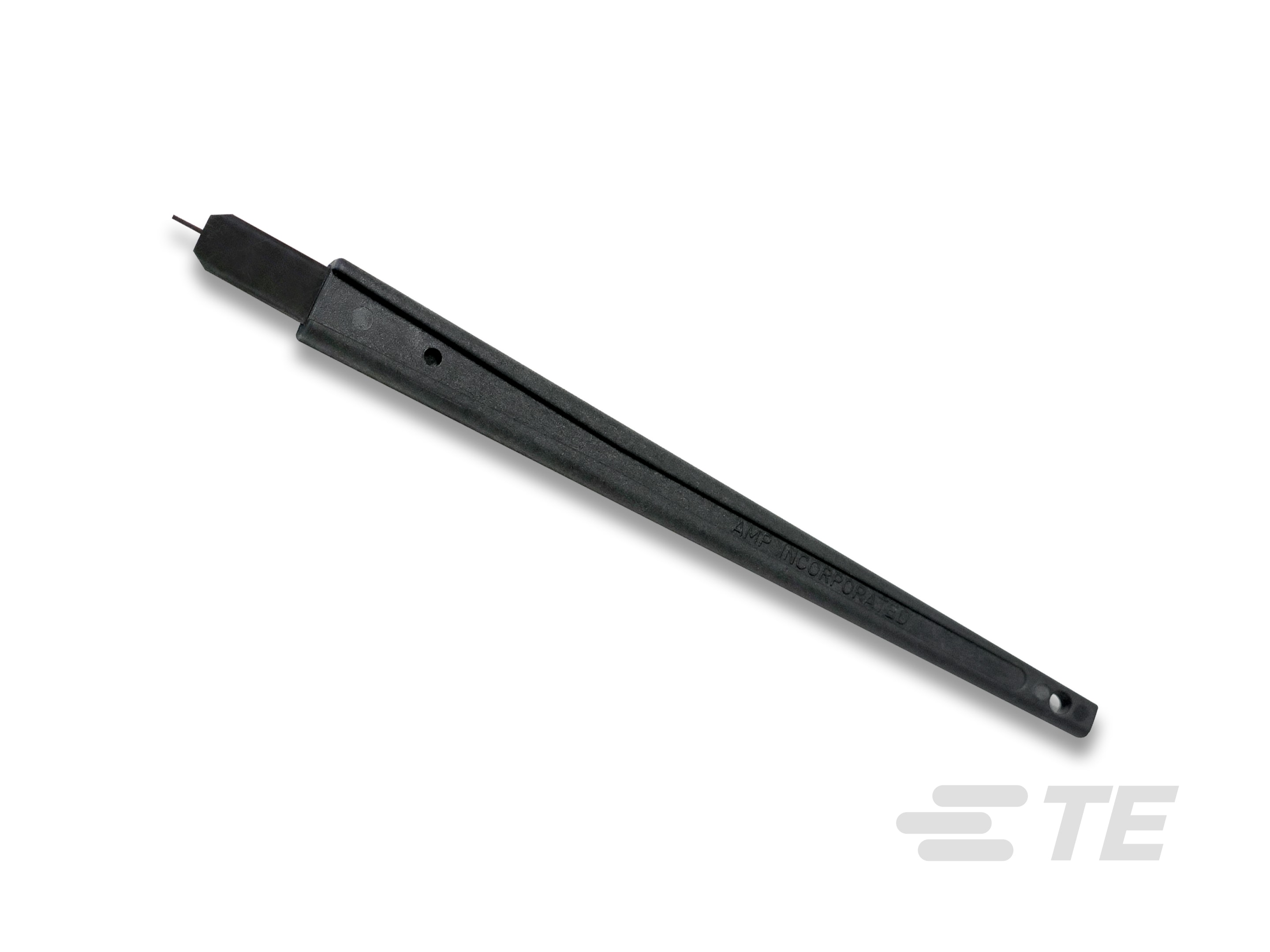

Extraction/Lance Reset Tool 843996-6

Datasheet

843996-6 | Datasheet
