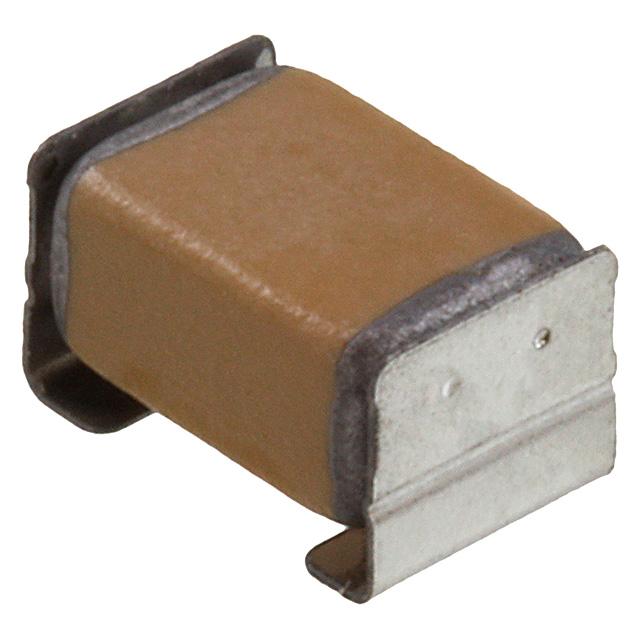

CKG45KX7R2E224M290JJ
ObsoleteTDK Corporation
CAP CER 0.22UF 250V X7R SMD
CKG45KX7R2E224M290JJ
ObsoleteTDK Corporation
CAP CER 0.22UF 250V X7R SMD
Description
General part information
CKG45KX7R2E224M290JJ
0.22 µF ±20% 250V Ceramic Capacitor X7R SMD, J-Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | CKG45KX7R2E224M290JJ |
|---|---|
| Applications | SMPS Filtering, Automotive, Decoupling, Bypass |
| Capacitance | 0.22 µF |
| Features | Low ESL |
| Lead Style | J-Lead |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | J-Lead, SMD |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.138 in |
| Temperature Coefficient | X7R |
| Thickness (Max) | 0.118 in |
| Tolerance | 20 % |
| Voltage - Rated | 250 V |
