1-284223-4
ActiveTE Connectivity AMP Connectors

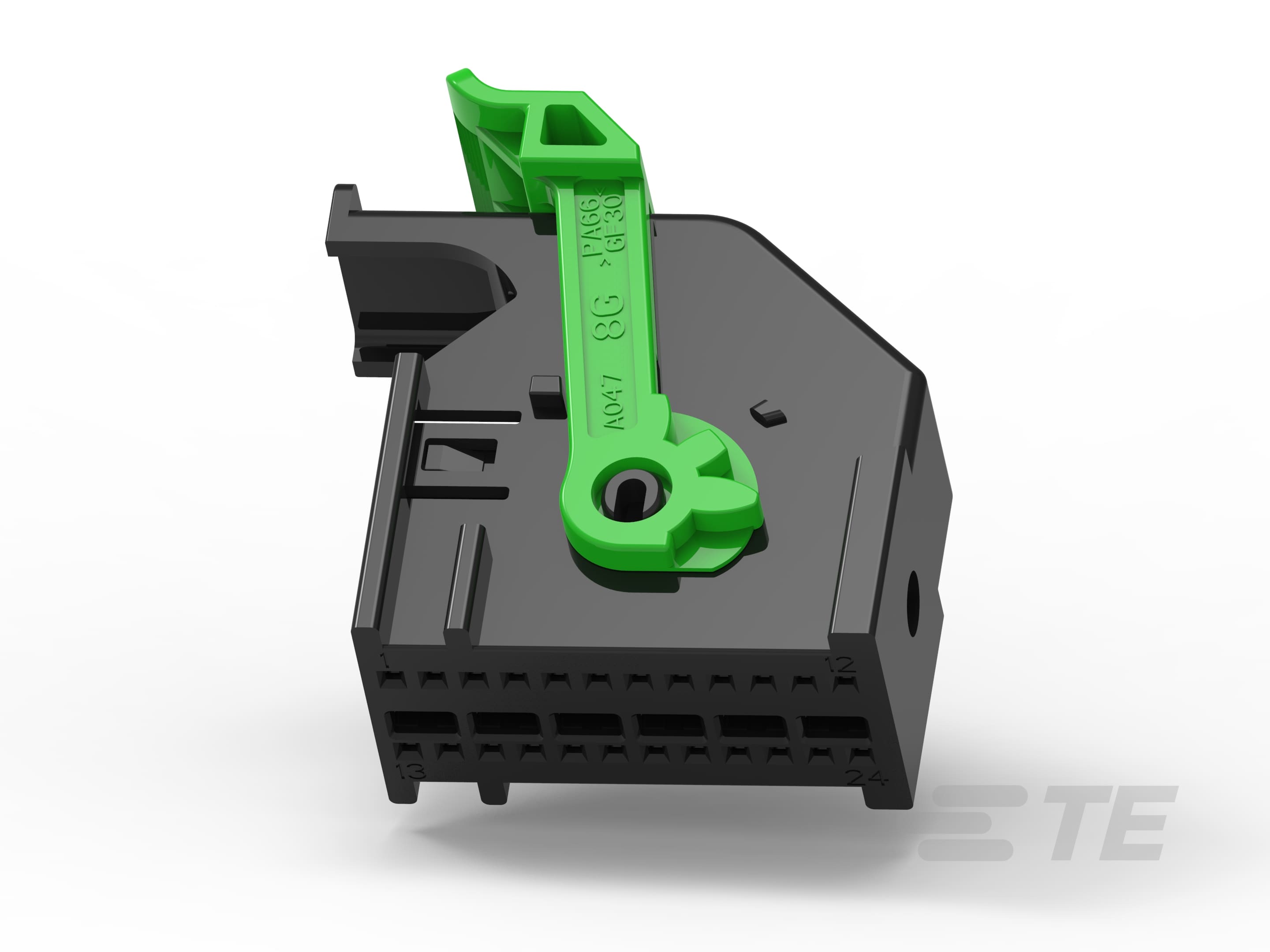

24 POS KIT ASSY FOR AIRBAG (ERGO LEVER)
1-284223-4
ActiveTE Connectivity AMP Connectors
24 POS KIT ASSY FOR AIRBAG (ERGO LEVER)
Description
General part information
1-284223-4
24 Position Housing, Housing for Female Terminals, Wire-to-Board, 2.54 mm [.1 in] Centerline, Black, Wire & Cable, Signal, Cable Mount (Free-Hanging)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-284223-4 |
|---|---|
| Color | Black |
| Connector Type | Housing for Female Insert |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Lever Lock |
| Insulation Material | Nylon 6/6, Polyamide (PA66), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 24 pos |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch | 0.1 in |
| Row Spacing | 0.236 in |
