Description
General part information

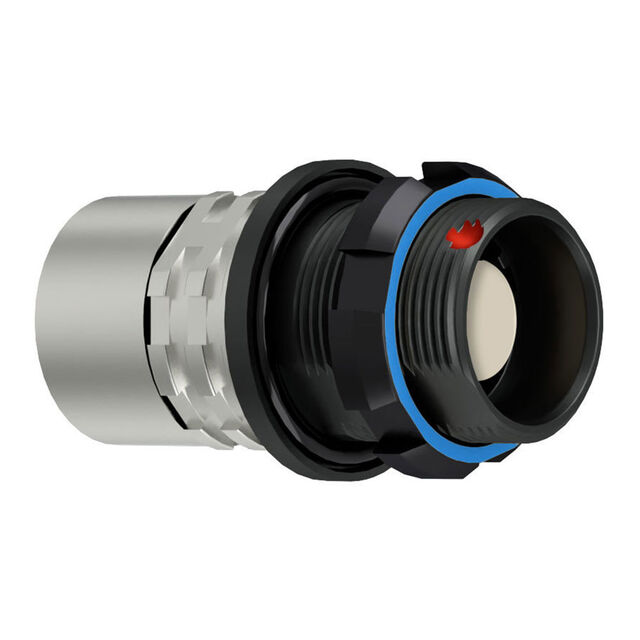

GS0WCM-P09WMM0-0000
9 (3 + 6 Power) Position Circular Connector Receptacle, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | GS0WCM-P09WMM0-0000 |
|---|---|
| Applications | Medical, Industrial, Military |
| Cable Opening (Max) | 0.276 in |
| Cable Opening (Min) | 0.126 in |
| Color | Black, Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating Options | 1A, 5A |
| Fastening Type | Threaded |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP69K, IP68 |
| Insert Material | Polyetheretherketone, PEEK |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Positions (Normal) | 3 |
| Number of Positions (Power) | 6 |
| Number of Positions (Total) | 9 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -51 °C |
| Orientation | C |
| Primary Material | Metal |
| Shell Finish | Ruthenium, Electroless Nickel |
| Shell Material | Brass |
| Shell Size - Insert | 0 |
| Shell Size - Insert | 0 |
| Termination | Solder Cup |
