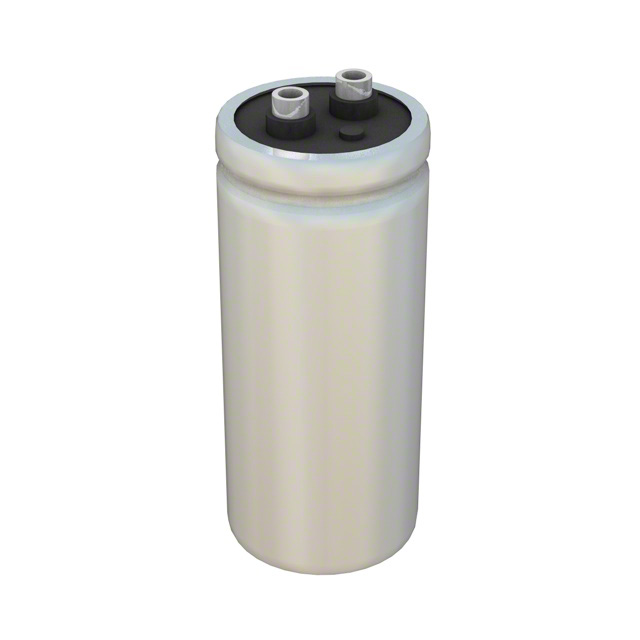

CGR292U050R3C
ActiveCornell Dubilier Knowles
CAP ALUM 2900UF 50V SCREW CHAS M
CGR292U050R3C
ActiveCornell Dubilier Knowles
CAP ALUM 2900UF 50V SCREW CHAS M
Description
General part information
CGR292U050R3C
2900 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 35.7mOhm @ 120Hz 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | CGR292U050R3C |
|---|---|
| Applications | General Purpose |
| Capacitance | 2900 µF |
| ESR (Equivalent Series Resistance) | 35.7 mOhm |
| Height - Seated (Max) | 3.125 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 8.51 A, 7.4 A |
| Size / Dimension Diameter | 1.375 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 75 % |
| Voltage - Rated | 50 V |
