325020-08-0
ActiveCurtis Industries

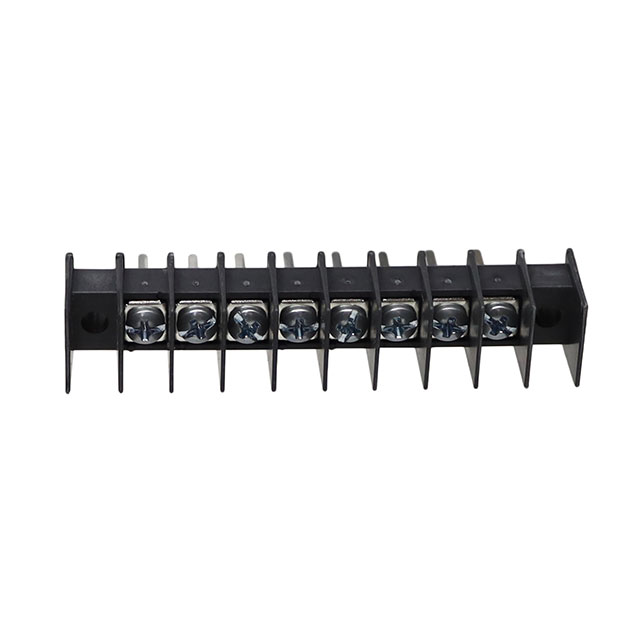

CONN BARRIER STRIP 8CIRC 0.325"
Deep-Dive with AI
Search across all available documentation for this part.
325020-08-0
ActiveCurtis Industries
CONN BARRIER STRIP 8CIRC 0.325"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 325020-08-0 | 325020 Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | Wire Wrap | Wire Wrap |
| Current Rating (Amps) | 15 A | 15 A |
| Features | Flange | Flange |
| Material - Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Chassis, Panel, Through Hole | Chassis, Panel, Through Hole |
| Number of Circuits | - | 2 - 26 |
| Number of Circuits [custom] | 8 | 8 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 8 | 2 - 26 |
| Number of Wire Entries | - | 22 - 23 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 8.26 mm | 8.26 mm |
| Pitch [x] | 0.325 in | 0.325 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws | Screws |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 14 AWG | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.39 | |
| 10 | $ 4.11 | |||
325020 Series
CONN BARRIER STRIP 3CIRC 0.325"
| Part | Features | Wire Gauge [Min] | Wire Gauge [Max] | Mounting Type | Operating Temperature | Number of Wire Entries | Bottom Termination | Number of Rows | Barrier Type | Pitch [x] | Pitch [x] | Top Termination | Voltage Rating | Terminal Block Type | Number of Circuits | Terminal Screw Material | Material Flammability Rating | Material - Insulation | Current Rating (Amps) | Number of Circuits [custom] | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 325020-03-0 | Flange | 14 AWG | 22 AWG | Chassis, Panel, Through Hole | 105 C | 3 | Wire Wrap | 1 | 2 Wall (Dual) | 8.26 mm | 0.325 in | Screws | 300 VDC | Barrier Block | 3 | Steel | UL94 V-0 | Polypropylene (PP) | 15 A | ||
Curtis Industries 325020-21-0 | Flange | 14 AWG | 22 AWG | Chassis, Panel, Through Hole | 105 C | 21 | Wire Wrap | 1 | 2 Wall (Dual) | 8.26 mm | 0.325 in | Screws | 300 VDC | Barrier Block | 21 | Steel | UL94 V-0 | Polypropylene (PP) | 15 A | ||
Curtis Industries 325020-08-0 | Flange | 14 AWG | 22 AWG | Chassis, Panel, Through Hole | 105 C | 8 | Wire Wrap | 1 | 2 Wall (Dual) | 8.26 mm | 0.325 in | Screws | 300 VDC | Barrier Block | Steel | UL94 V-0 | Polypropylene (PP) | 15 A | 8 | ||
Curtis Industries 325020-22-0 | Flange | 14 AWG | 22 AWG | Chassis, Panel, Through Hole | 105 C | Wire Wrap | 1 | 2 Wall (Dual) | 8.26 mm | 0.325 in | Screws | 300 VDC | Barrier Block | 22 | Steel | UL94 V-0 | Polypropylene (PP) | 15 A | 22 | ||
Curtis Industries 325020-23-0 | Flange | 14 AWG | 22 AWG | Chassis, Panel, Through Hole | 105 C | Wire Wrap | 1 | 2 Wall (Dual) | 8.26 mm | 0.325 in | Screws | 300 VDC | Barrier Block | 23 | Steel | UL94 V-0 | Polypropylene (PP) | 15 A | 23 | ||
Curtis Industries 325020-26-0 | Flange | 14 AWG | 22 AWG | Chassis, Panel, Through Hole | 105 C | 26 | Wire Wrap | 1 | 2 Wall (Dual) | 8.26 mm | 0.325 in | Screws | 300 VDC | Barrier Block | 26 | Steel | UL94 V-0 | Polypropylene (PP) | 15 A | ||
Curtis Industries 325020-24-0 | Flange | 14 AWG | 22 AWG | Chassis, Panel, Through Hole | 105 C | Wire Wrap | 1 | 2 Wall (Dual) | 8.26 mm | 0.325 in | Screws | 300 VDC | Barrier Block | 24 | Steel | UL94 V-0 | Polypropylene (PP) | 15 A | |||
Curtis Industries 325020-17-0 | Flange | 14 AWG | 22 AWG | Chassis, Panel, Through Hole | 105 C | 17 | Wire Wrap | 1 | 2 Wall (Dual) | 8.26 mm | 0.325 in | Screws | 300 VDC | Barrier Block | 17 | Steel | UL94 V-0 | Polypropylene (PP) | 15 A | ||
Curtis Industries 325020-15-0 | Flange | 14 AWG | 22 AWG | Chassis, Panel, Through Hole | 105 C | 15 | Wire Wrap | 1 | 2 Wall (Dual) | 8.26 mm | 0.325 in | Screws | 300 VDC | Barrier Block | 15 | Steel | UL94 V-0 | Polypropylene (PP) | 15 A | ||
Curtis Industries 325020-07-0 | Flange | 14 AWG | 22 AWG | Chassis, Panel, Through Hole | 105 C | 7 | Wire Wrap | 1 | 2 Wall (Dual) | 8.26 mm | 0.325 in | Screws | 300 VDC | Barrier Block | 7 | Steel | UL94 V-0 | Polypropylene (PP) | 15 A |
Description
General part information
325020 Series
8 Circuit 0.325" (8.26mm) Barrier Block Connector Screws
