F339X252230MKI2B0
ActiveVishay Dale

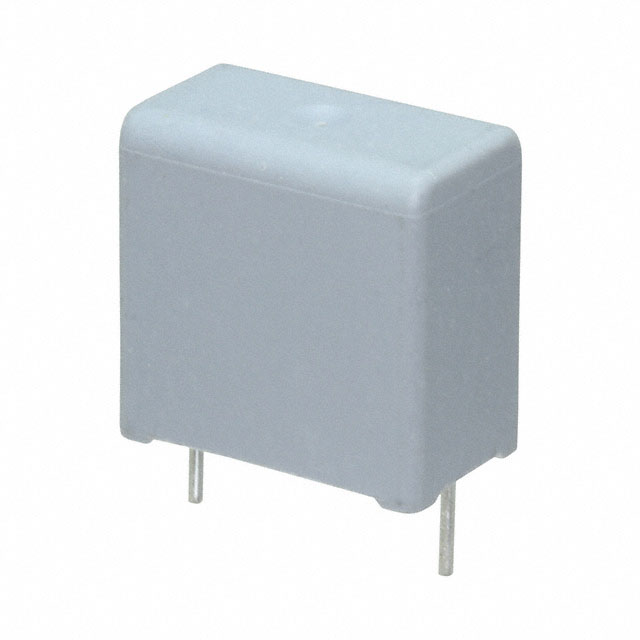

CAP FILM 2.2UF 20% 630VDC RADIAL
F339X252230MKI2B0
ActiveVishay Dale
CAP FILM 2.2UF 20% 630VDC RADIAL
Description
General part information
F339X252230MKI2B0
2.2 µF Film Capacitor 305V 630V Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | F339X252230MKI2B0 |
|---|---|
| Applications | EMI, Automotive, RFI Suppression |
| Capacitance | 2.2 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Features | 85C/85% Humidity, 85% Humidity, 85C Humidity |
| Height - Seated (Max) | 1.102 in |
| Lead Spacing | 1.083 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Ratings | X2, AEC-Q200 |
| Size / Dimension Length | 1.22 in |
| Size / Dimension Width | 0.709 in |
| Termination | PC Pins |
| Tolerance | 20 % |
| Voltage Rating - AC | 305 V |
| Voltage Rating - DC | 630 V |
