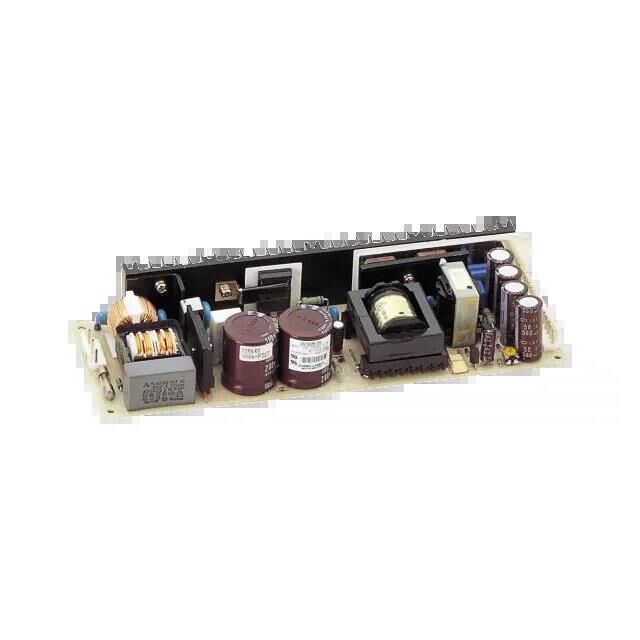

VS150B-15
ObsoleteTDK Corporation
AC/DC CONVERTER 15V 150W
VS150B-15
ObsoleteTDK Corporation
AC/DC CONVERTER 15V 150W
Description
General part information
VS150B-15
Open Frame AC DC Converters 1 Output 15V 85 ~ 132 VAC, 110 ~ 175 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | VS150B-15 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output 1 | 10 A |
| Efficiency | 80 % |
| Features | Adjustable Output, DC Input Capable |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| Power (Watts) | 150 W |
| Size / Dimension Height | 1.42 in |
| Size / Dimension Length | 8.74 in |
| Size / Dimension Width | 2.95 in |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 132 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Input (DC) Maximum | 175 VDC |
| Voltage - Input (DC) Minimum | 110 V |
| Voltage - Isolation | 2000 V |
| Voltage - Output 1 | 15 V |
