AANI-CH-0070

Active

Abracon LLC

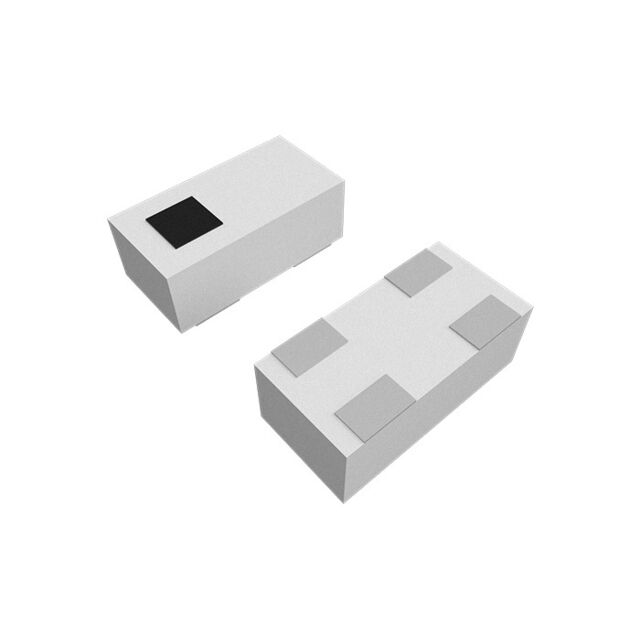

RF ANTENNA 2.4 GHZ CERAMIC CHIP

Search across all available documentation for this part.

Active

Abracon LLC

RF ANTENNA 2.4 GHZ CERAMIC CHIP

Technical Specifications

Parameters and characteristics for this part

Specification	AANI-CH-0070

Antenna Type	Chip
Applications	Zigbee™, ISM, M2M, IoT, Bluetooth, Wi-Fi
Frequency Range [Max]	2.5 GHz
Frequency Range [Min]	2.4 GHz
Gain	2.8 dBi
Height (Max) [Max] [z]	0.016 in
Height (Max) [Max] [z]	0.4 mm
Mounting Type	Surface Mount
Number of Bands	1
Power - Max [Max]	2 W
Return Loss	-7.2 dB
Termination	Solder
VSWR	2.5

RF ANTENNA 2.4 GHZ CERAMIC CHIP

Part	VSWR	Power - Max [Max]	Mounting Type	Applications	Gain	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Antenna Type	Frequency Range [Max]	Frequency Range [Min]	Termination	Number of Bands	Return Loss
Abracon LLC AANI-CH-0070	2.5	2 W	Surface Mount	Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™	2.8 dBi	0.016 in	0.4 mm	Chip	2.5 GHz	2.4 GHz	Solder	1	-7.2 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™ Chip Solder Surface Mount
