8241A 010U1000

Active

Belden Inc.

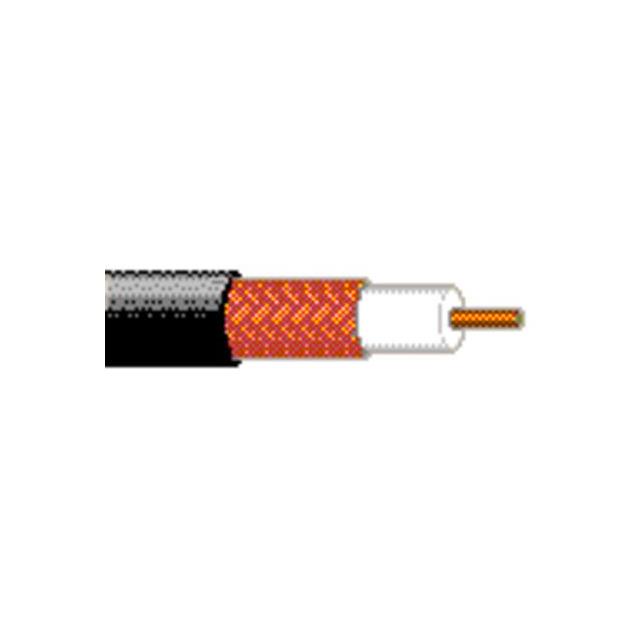

RG-59/U TYPE COAX

Search across all available documentation for this part.

Active

Belden Inc.

RG-59/U TYPE COAX

Technical Specifications

Parameters and characteristics for this part

Specification	8241A 010U1000

Cable Group	RG-59
Cable Type	Coaxial
Conductor Material	Steel, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.146 "
Dielectric Diameter [diameter]	3.71 mm
Impedance	75 Ohms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Shield Coverage	95 %
Shield Material	Copper, Bare
Shield Type	Braid
Usage	Video
Wire Gauge	23 AWG

Part	Impedance	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Material	Length	Length	Conductor Strand	Cable Group	Jacket (Insulation) Material	Shield Coverage	Wire Gauge	Shield Type	Cable Type	Jacket Color
Belden Inc. 8241A 010U1000	75 Ohms	Video	-40 °C	75 ░C	Copper Coated Steel	0.146 "	3.71 mm	Copper Bare	304.8 m	1000 ft	Solid	RG-59	Poly-Vinyl Chloride (PVC)	95 %	23 AWG	Braid	Coaxial	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.04

General part information

Coaxial Cable 23 AWG RG-59 1000.0' (304.80m) 75 Ohms
