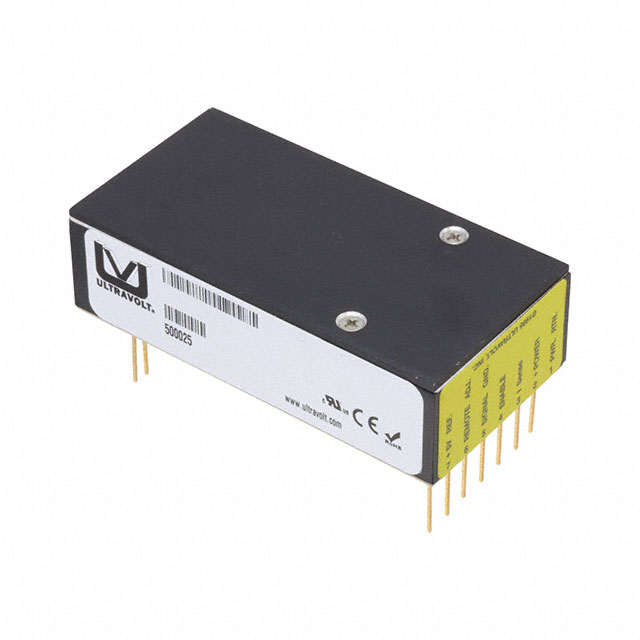

Specification	1/4AA24-P30

Applications	ITE (Commercial)
Approval Agency	cURus, CE
Current - Output (Max)	120 mA
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature (Max)	65 °C
Operating Temperature (Min)	-40 °C
Package / Case	11-DIP Module
Power (Watts)	30 W
Size / Dimension Height	0.81 in
Size / Dimension Length	2.97 in
Size / Dimension Width	1.5 in
Type	High Voltage - Non-Isolated Module
Voltage - Input (Max)	30 V p-p
Voltage - Input (Min)	23 V
Voltage - Output 1	250 V

1/4AA24 Series

Part	Power (Watts)	Voltage - Input (Min)	Approval Agency	Number of Outputs	Control Features	Type	Package / Case	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Output 1	Applications	Voltage - Input (Max)	Mounting Type	Current - Output (Max)
ULTRAVOLT / Advanced Energy 1/4AA12-P4-I5	15 W	11 V	CE cURus	1	Active High Enable	High Voltage - Non-Isolated Module	11-DIP Module	0.75 in	1.5 in	2.97 in	-40 °C	65 °C	250 V	ITE (Commercial)	16 V	Through Hole	16 mA
ULTRAVOLT / Advanced Energy 1/4AA12-P4	15 W	11 V	CE cURus	1	Active High Enable	High Voltage - Non-Isolated Module	11-DIP Module	0.75 in	1.5 in	2.97 in	-40 °C	65 °C	250 V	ITE (Commercial)	16 V	Through Hole	16 mA
