8527 003100

Active

Belden Inc.

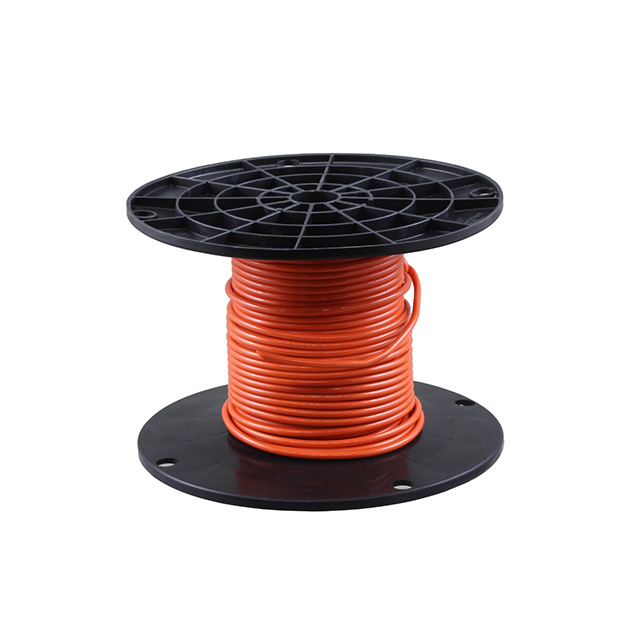

HOOK-UP STRND 12AWG ORANGE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCabling Solutions for Industrial Applications Datasheet

8527 003100

Active

Belden Inc.

HOOK-UP STRND 12AWG ORANGE

Deep-Dive with AI

DocumentsCabling Solutions for Industrial Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8527 003100

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	65
Features	Chemical Resistant
Jacket (Insulation) Diameter [diameter]	0.128 in
Jacket (Insulation) Diameter [diameter]	3.25 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.021 in
Jacket (Insulation) Thickness	0.53 mm
Jacket Color	Orange
Length [x]	30.5 m
Length [x]	100 ft
Qualification	MIL-W-76C Type MW
Voltage	1000 V
Wire Gauge	12 AWG

8527 Series

Part	Wire Gauge	Jacket (Insulation) Material	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Length	Length	Voltage	Qualification	Features	Cable Type	Length [x]	Length [x]	Operating Temperature
Belden Inc. 8527 0081000	12 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	0.021 in	0.53 mm	30 AWG	65	0.128 in	3.25 mm	Gray	1000 ft	304.8 m	1000 V	MIL-W-76C Type MW	Chemical Resistant	Hook-Up
Belden Inc. 8527 003100	12 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	0.021 in	0.53 mm	30 AWG	65	0.128 in	3.25 mm	Orange			1000 V	MIL-W-76C Type MW	Chemical Resistant	Hook-Up	30.5 m	100 ft
Belden Inc. 8527 0061000	12 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	0.021 in	0.53 mm	30 AWG	65	0.128 in	3.25 mm	Blue	1000 ft	304.8 m	1000 V	MIL-W-76C Type MW	Chemical Resistant	Hook-Up
Belden Inc. 8527 0031000	12 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	0.021 in	0.53 mm	30 AWG	65	0.128 in	3.25 mm	Orange	1000 ft	304.8 m	1000 V	MIL-W-76C Type MW	Chemical Resistant	Hook-Up
Belden Inc. 8527 006100	12 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	0.021 in	0.53 mm	30 AWG	65	0.128 in	3.25 mm	Blue			1000 V	MIL-W-76C Type MW	Chemical Resistant	Hook-Up	30.5 m	100 ft
Belden Inc. 8527 0091000	12 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	0.021 in	0.53 mm	30 AWG	65	0.128 in	3.25 mm		1000 ft	304.8 m	1000 V	MIL-W-76C Type MW	Chemical Resistant	Hook-Up
Belden Inc. 8527 0051000	12 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	0.021 in	0.53 mm	30 AWG	65	0.128 in	3.25 mm	Green	1000 ft	304.8 m	1000 V	MIL-W-76C Type MW	Chemical Resistant	Hook-Up
Belden Inc. 8527 010100	12 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	0.021 in	0.53 mm	30 AWG	65	0.128 in	3.25 mm	Black			1000 V	MIL-W-76C Type MW	Chemical Resistant	Hook-Up	30.5 m	100 ft	80 °C
Belden Inc. 8527 005100	12 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	0.021 in	0.53 mm	30 AWG	65	0.128 in	3.25 mm	Green			1000 V	MIL-W-76C Type MW	Chemical Resistant	Hook-Up	30.5 m	100 ft	80 °C
Belden Inc. 8527 002100	12 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	0.021 in	0.53 mm	30 AWG	65	0.128 in	3.25 mm	Red			1000 V	MIL-W-76C Type MW	Chemical Resistant	Hook-Up	30.5 m	100 ft	80 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 5.10
		200	$ 4.85
		300	$ 4.71
		500	$ 4.53
		700	$ 4.42
		1000	$ 4.30

Description

General part information

8527 Series

12 AWG Hook-Up Wire 65/30 Orange 1000V 100.0' (30.5m)

Documents

Technical documentation and resources

Cabling Solutions for Industrial Applications

Datasheet
