964739-1

Active

TE Connectivity AMP Connectors

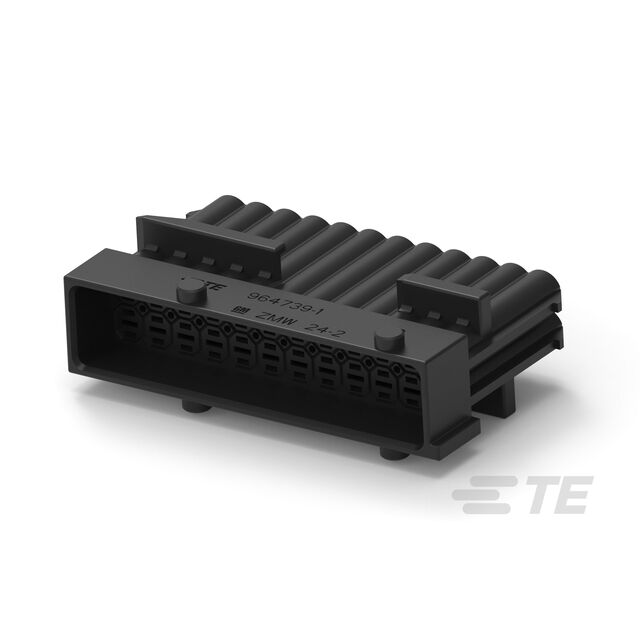

CONN PLUG HSG 24POS 5.00MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 24POS 5.00MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	964739-1	964739 Series

Color	Black	Gray, Black
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Tab	Tab
Fastening Type	Latch Lock	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	24	24
Number of Rows	2	2
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Row Spacing [Max]	0.236 in	0.236 in
Row Spacing [Max]	6 mm	6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

CONN PLUG HSG 24POS 5.00MM

Part	Color	Connector Type	Note	Row Spacing [Max]	Row Spacing [Max]	Contact Termination	Number of Rows	Mounting Type	Fastening Type	Pitch [x]	Pitch [x]	Number of Positions	Contact Type	Insulation Material
TE Connectivity AMP Connectors 964739-2	Gray	Plug	Contacts Not Included	0.236 in	6 mm	Crimp	2	Free Hanging (In-Line)	Latch Lock	5 mm	0.197 in	24	Tab
TE Connectivity AMP Connectors 964739-1	Black	Plug	Contacts Not Included	0.236 in	6 mm	Crimp	2	Free Hanging (In-Line)	Latch Lock	5 mm	0.197 in	24	Tab	Polybutylene Terephthalate (PBT), Glass Filled

General part information

24 Rectangular Connectors - Housings Plug Black 0.197" (5.00mm)
