FMCA1974-50CM
ActiveFairview Microwave
CBL ASSY SMAPLUG-2.4MMPLUG 19.68
FMCA1974-50CM
ActiveFairview Microwave
CBL ASSY SMAPLUG-2.4MMPLUG 19.68
Description
General part information
FMCA1974-50CM

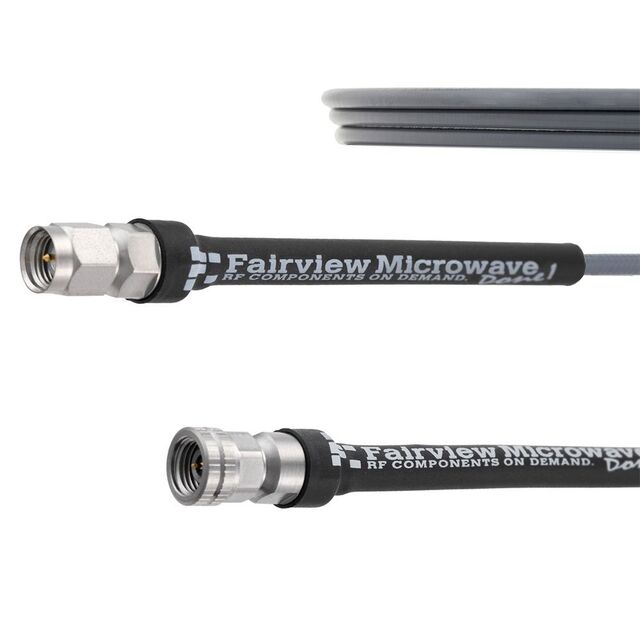

Cable Assembly Coaxial 2.4mm to SMA FM-103FLEX 19.69" (500.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA1974-50CM |
|---|---|
| 1st Connector | Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size | 2.4 mm |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | 103FLEX, FM |
| Color | Gray |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 26.5 GHz |
| Length | 19.69 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -45 °C |
| Overall Impedance | 50 Ohms |
| Style | 2.4mm to SMA |
