AE3550B11506
ActiveAnatech Electronics Inc.

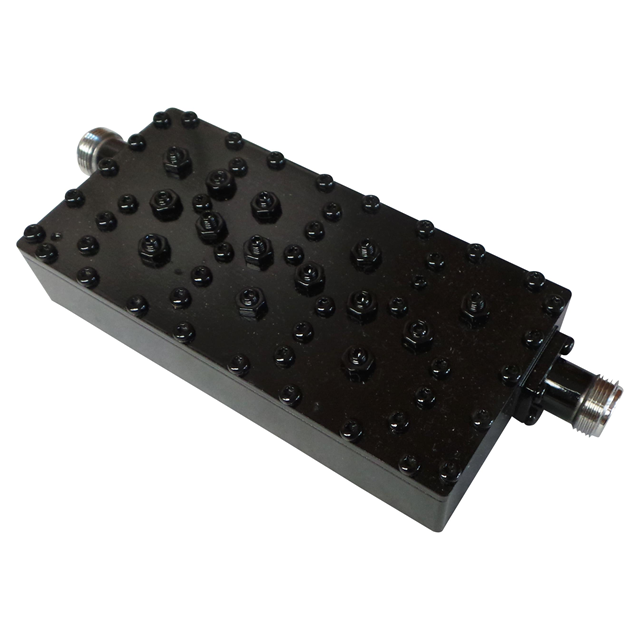

RF FILTER BAND PASS 3.55GHZ MOD
AE3550B11506
ActiveAnatech Electronics Inc.
RF FILTER BAND PASS 3.55GHZ MOD
Description
General part information
AE3550B11506
3.55GHz Center Frequency Band Pass RF Filter (Radio Frequency) 80MHz Bandwidth 1dB Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | AE3550B11506 |
|---|---|
| Bandwidth | 80 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 3.55 GHz |
| Height (Max) | 1.65 in |
| Insertion Loss | 1 dB |
| Mounting Type | Chassis Mount |
| Package / Case | Module, SMA Connectors |
| Size / Dimension Length | 5.04 in |
| Size / Dimension Width | 2.44 in |
