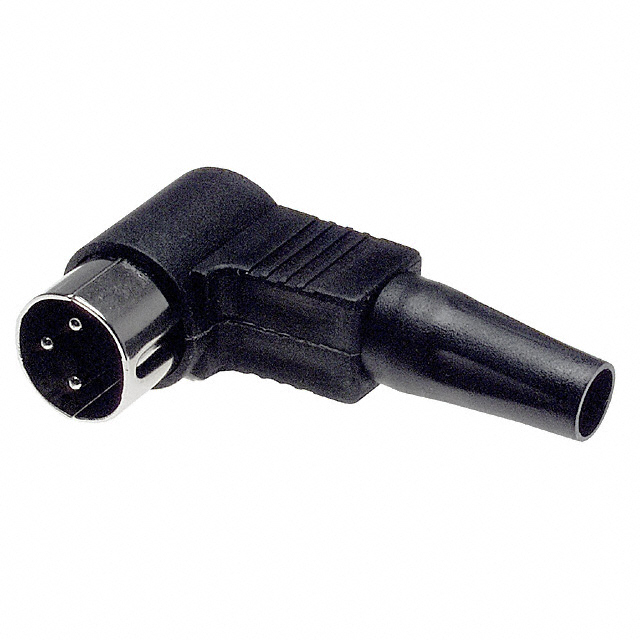

SDR-30
ActiveSame Sky (Formerly CUI Devices)
CONN PLUG MALE DIN 3POS SOLDER
SDR-30
ActiveSame Sky (Formerly CUI Devices)
CONN PLUG MALE DIN 3POS SOLDER
Description
General part information
SDR-30
3 Position Circular Connector Plug, Male Pins Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | SDR-30 |
|---|---|
| Cable Opening | 0.236 in |
| Color | Black, Silver |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Nickel |
| Contact Material | Brass |
| Current Rating | 1 A |
| Fastening Type | Push-Pull |
| Features | Strain Relief |
| Insert Material | ABS, Polyacrylonitrile Butadiene Styrene |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Positions | 3 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Material | Metal |
| Shell Size - Insert | DIN (180 Degree) |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 100 VAC |
