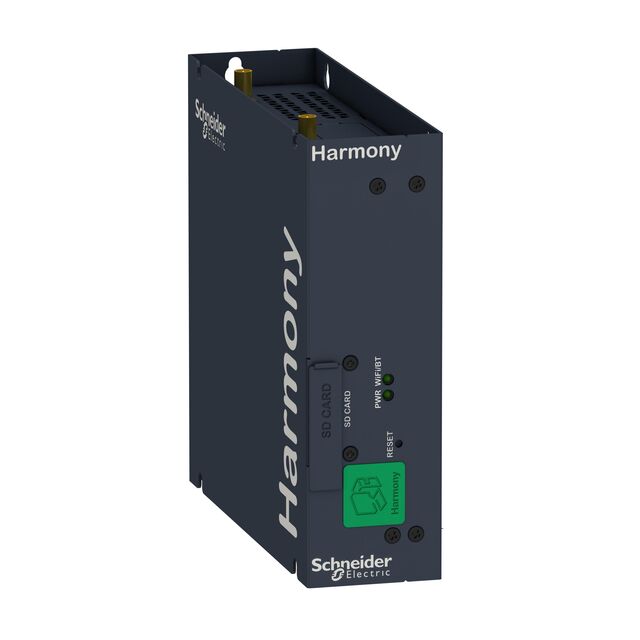

Specification	HMIBSCEA53D1L0T

Approval Agency	FCC, UL, CE, EAC, cULus
Core Processor	ARM® Cortex™-A53
Core Processor Core Count	4 Core
Core Processor Frequency	1.2 GHz
Display Type	No Display
Expansion Type	mini PCIe
Features	Micro SD Card Slot
Ingress Protection	IP40
Memory Capacity (Installed)	1 GB
Memory Type	LPDDR3
Mounting Type	Panel Mount
Operating System	Linux
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	0 °C
Storage Capacity	8 GB
Storage Type	eMMC
Type	Box PC
Voltage - Supply	24 VDC
Voltage - Supply (Maximum)	240 VAC
Voltage - Supply (Minimum)	100 VAC
Voltage - Supply (Option 1)	24 VAC
Voltage - Supply (Range 1 Maximum)	240 VAC
Voltage - Supply (Range 1 Minimum)	100 VAC
Voltage - Supply (Range 2 Maximum)	24 VDC
Voltage - Supply (Range 2 Minimum)	24 VAC
Voltage - Supply Maximum	240 VAC
Voltage - Supply Minimum	100 VAC
