1001932PT-AD10L0050
ActiveKYOCERA AVX
TUNABLE WI-FI 6E/BLUETOOTH PCB

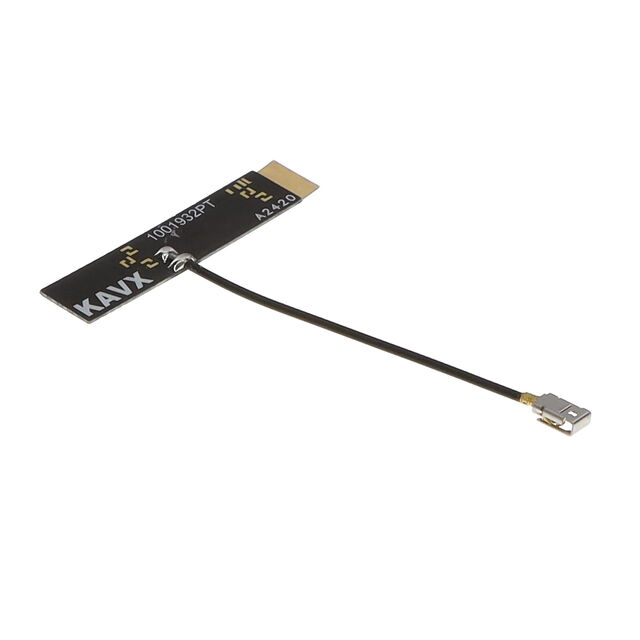

1001932PT-AD10L0050
ActiveKYOCERA AVX
TUNABLE WI-FI 6E/BLUETOOTH PCB
Description
General part information
1001932PT-AD10L0050
RF ANTENNA Bluetooth, Wi-Fi, WLAN, Zigbee™ PCB Trace MHF, U.FL Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | 1001932PT-AD10L0050 |
|---|---|
| Antenna Type | PCB Trace |
| Applications | Wi-Fi, Zigbee™, WLAN, Bluetooth |
| Features | Cable, 50mm |
| Frequency (Center/Band) | 2.442GHz, 5.362GHz, 6.525GHz |
| Frequency (Center/Band) - 1 | 2.442 GHz |
| Frequency (Center/Band) - 2 | 5.362 GHz |
| Frequency (Center/Band) - 3 | 6.525 GHz |
| Frequency Group | SHF, UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Band 1) Maximum | 2.485 GHz |
| Frequency Range (Band 1) Minimum | 2.4 GHz |
| Frequency Range (Band 2) Maximum | 5.825 GHz |
| Frequency Range (Band 2) Minimum | 4.9 GHz |
| Frequency Range (Band 3) Maximum | 7.125 GHz |
| Frequency Range (Band 3) Minimum | 5.925 GHz |
| Gain | 4.45 dBi, 2.03 dBi, 6.11 dBi |
| Height (Max) | 0.016 in |
| Mounting Type | Adhesive |
| Number of Bands | 3 |
| Power - Max | 2 VA |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Termination | U.FL, MHF |
| VSWR | 2.1 |
