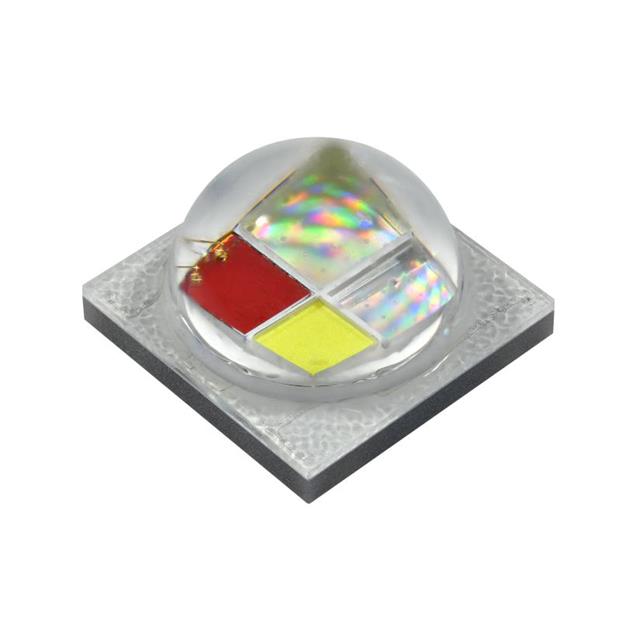

Specification	XMLDCL-00-R250-00C3AAAE7

Color	White (RGBW), Green, Red, Blue
Current - Max (Blue)	1.75 A
Current - Max (Green)	1.75 A
Current - Max (Red)	1.75 A
Current - Max (White)	1.75 A
Current - Max Colors	White, Green, Blue, Red
Current - Test (Blue)	350 mA
Current - Test (Green)	350 mA
Current - Test (Red)	350 mA
Current - Test (White)	350 mA
Current - Test Colors	Blue, Green, Red, White
Height - Seated (Max)	0.124 in
Lumens/Watt (Blue)	23 lm/W
Lumens/Watt (Green)	170 lm/W
Lumens/Watt (Red)	109 lm/W
Lumens/Watt (White)	128 lm/W
Lumens/Watt Color	White, Blue, Red, Green
Luminous Flux (Blue)	23 lm
Luminous Flux (Green)	155 lm
Luminous Flux (Red)	80 lm
Luminous Flux (White)	130 lm
Luminous Flux Colors	Blue, Red, Green, White
Mounting Type	Surface Mount
Package / Case	2020 (5050 Metric)
Package Name	2020
Size / Dimension Length	0.197 in
Size / Dimension Width	0.197 in
Supplier Device Package	2020
Temperature - Test	25 °C
Thermal Resistance of Package	0.8 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ) (Blue)	2.9 V
Voltage - Forward (Vf) (Typ) (Green)	2.6 V
Voltage - Forward (Vf) (Typ) (Red)	2.1 V
Voltage - Forward (Vf) (Typ) Color	Green, Blue, White, Red
Wavelength (Blue)	458 nm
Wavelength (Green)	528 nm
Wavelength (Red)	625 nm
Wavelength (White)	2950 K
Wavelength Colors	Green, White, Red, Blue

XMLDCL Series

...

Part	Mounting Type	Package / Case	Temperature - Test	Viewing Angle	Package Name	Supplier Device Package	Lumens/Watt (Red)	Lumens/Watt Color	Lumens/Watt (White)	Lumens/Watt (Green)	Lumens/Watt (Blue)	Current - Test (Green)	Current - Test Colors	Current - Test (White)	Current - Test (Blue)	Current - Test (Red)	Size / Dimension Length	Size / Dimension Width	Current - Max (Green)	Current - Max Colors	Current - Max (White)	Current - Max (Red)	Current - Max (Blue)	Voltage - Forward (Vf) (Typ) (Red)	Voltage - Forward (Vf) (Typ) Color	Voltage - Forward (Vf) (Typ) (Green)	Voltage - Forward (Vf) (Typ) (Blue)	Wavelength Colors	Wavelength (Blue)	Wavelength (Red)	Wavelength (Green)	Wavelength (White)	Height - Seated (Max)	Luminous Flux (White)	Luminous Flux Colors	Luminous Flux (Blue)	Luminous Flux (Green)	Luminous Flux (Red)	Color	Thermal Resistance of Package
CreeLED, Inc. XMLDCL-H0-0000-00A3AAAC1	Surface Mount	2020 (5050 Metric)	25 °C	118 °	2020	2020	129 lm/W	Blue Green Red White	118 lm/W	187 lm/W	41 lm/W	350 mA	Blue Green Red White	350 mA	350 mA	350 mA	0.197 in	0.197 in	1.75 A	Blue Green Red White	1.75 A	1.75 A	1.75 A	2.1 V	Blue Green Red White	2.6 V	2.9 V	Blue Green Red White	458 nm	625 nm	528 nm	2950 K	0.044 in	120 lm	Blue Green Red White	42 lm	170 lm	95 lm	Blue Green Red White (RGBW)
CreeLED, Inc. XMLDCL-H0-0000-00A4ABCA2	Surface Mount	2020 (5050 Metric)	25 °C	118 °	2020	2020	129 lm/W	Blue Green Red White	118 lm/W	187 lm/W	41 lm/W	350 mA	Blue Green Red White	350 mA	350 mA	350 mA	0.197 in	0.197 in	1.75 A	Blue Green Red White	1.75 A	1.75 A	1.75 A	2.1 V	Blue Green Red White	2.6 V	2.9 V	Blue Green Red White	458 nm	625 nm	528 nm	6850 K	0.044 in	120 lm	Blue Green Red White	42 lm	170 lm	95 lm	Blue Green Red White (RGBW)
CreeLED, Inc. XMLDCL-00-0000-00C3ACBC1	Surface Mount	2020 (5050 Metric)	25 °C	120 °	2020	2020	136 lm/W	Blue Green Red White	138 lm/W	198 lm/W	43 lm/W	350 mA	Blue Green Red White	350 mA	350 mA	350 mA	0.197 in	0.197 in	1.75 A	Blue Green Red White	1.75 A	1.75 A	1.75 A	2.1 V	Blue Green Red White	2.6 V	2.9 V	Blue Green Red White	458 nm	625 nm	528 nm	2950 K	0.124 in	140 lm	Blue Green Red White	44 lm	180 lm	100 lm	Blue Green Red White (RGBW)
CreeLED, Inc. XMLDCL-H0-R250-00A3AAAE7	Surface Mount	2020 (5050 Metric)	25 °C	118 °	2020	2020	88 lm/W	Blue Green Red White	118 lm/W	154 lm/W	17 lm/W	350 mA	Blue Green Red White	350 mA	350 mA	350 mA	0.197 in	0.197 in	1.75 A	Blue Green Red White	1.75 A	1.75 A	1.75 A	2.1 V	Blue Green Red White	2.6 V	2.9 V	Blue Green Red White	458 nm	625 nm	528 nm	2950 K	0.044 in	120 lm	Blue Green Red White	17 lm	140 lm	65 lm	Blue Green Red White (RGBW)	0.8 °C/W
CreeLED, Inc. XMLDCL-H0-0000-00A3AABE7	Surface Mount	2020 (5050 Metric)	25 °C	118 °	2020	2020	88 lm/W	Blue Green Red White	133 lm/W	154 lm/W	17 lm/W	350 mA	Blue Green Red White	350 mA	350 mA	350 mA	0.197 in	0.197 in	1.75 A	Blue Green Red White	1.75 A	1.75 A	1.75 A	2.1 V	Blue Green Red White	2.6 V	2.9 V	Blue Green Red White	458 nm	625 nm	528 nm	4000 K	0.044 in	135 lm	Blue Green Red White	17 lm	140 lm	65 lm	Blue Green Red White - Neutral (RGBW)	0.8 °C/W
CreeLED, Inc. XMLDCL-H0-0000-00A4ACCA2	Surface Mount	2020 (5050 Metric)	25 °C	118 °	2020	2020	129 lm/W	Blue Green Red White	118 lm/W	187 lm/W	41 lm/W	350 mA	Blue Green Red White	350 mA	350 mA	350 mA	0.197 in	0.197 in	1.75 A	Blue Green Red White	1.75 A	1.75 A	1.75 A	2.1 V	Blue Green Red White	2.6 V	2.9 V	Blue Green Red White	458 nm	625 nm	528 nm	6850 K	0.044 in	120 lm	Blue Green Red White	42 lm	170 lm	95 lm	Blue Green Red White (RGBW)
CreeLED, Inc. XMLDCL-00-0000-00C4AACB1	Surface Mount	2020 (5050 Metric)	25 °C	120 °	2020	2020	136 lm/W	Blue Green Red White	138 lm/W	198 lm/W	43 lm/W	350 mA	Blue Green Red White	350 mA	350 mA	350 mA	0.197 in	0.197 in	1.75 A	Blue Green Red White	1.75 A	1.75 A	1.75 A	2.1 V	Blue Green Red White	2.6 V	2.9 V	Blue Green Red White	458 nm	625 nm	528 nm	4000 K	0.124 in	140 lm	Blue Green Red White	44 lm	180 lm	100 lm	Blue Green Red White (RGBW)
CreeLED, Inc. XMLDCL-H0-0000-00A4AACB1	Surface Mount	2020 (5050 Metric)	25 °C	118 °	2020	2020	129 lm/W	Blue Green Red White	118 lm/W	187 lm/W	41 lm/W	350 mA	Blue Green Red White	350 mA	350 mA	350 mA	0.197 in	0.197 in	1.75 A	Blue Green Red White	1.75 A	1.75 A	1.75 A	2.1 V	Blue Green Red White	2.6 V	2.9 V	Blue Green Red White	458 nm	625 nm	528 nm	4000 K	0.044 in	120 lm	Blue Green Red White	42 lm	170 lm	95 lm	Blue Green Red White (RGBW)
CreeLED, Inc. XMLDCL-H0-0000-00A4ABCA2	Surface Mount	2020 (5050 Metric)	25 °C	118 °	2020	2020	129 lm/W	Blue Green Red White	118 lm/W	187 lm/W	41 lm/W	350 mA	Blue Green Red White	350 mA	350 mA	350 mA	0.197 in	0.197 in	1.75 A	Blue Green Red White	1.75 A	1.75 A	1.75 A	2.1 V	Blue Green Red White	2.6 V	2.9 V	Blue Green Red White	458 nm	625 nm	528 nm	6850 K	0.044 in	120 lm	Blue Green Red White	42 lm	170 lm	95 lm	Blue Green Red White (RGBW)
CreeLED, Inc. XMLDCL-00-0000-00C5ABCAA	Surface Mount	2020 (5050 Metric)	25 °C	120 °	2020	2020	136 lm/W	Blue Green Red White	138 lm/W	198 lm/W	43 lm/W	350 mA	Blue Green Red White	350 mA	350 mA	350 mA	0.197 in	0.197 in	1.75 A	Blue Green Red White	1.75 A	1.75 A	1.75 A	2.1 V	Blue Green Red White	2.6 V	2.9 V	Blue Green Red White	458 nm	625 nm	528 nm	6850 K	0.124 in	140 lm	Blue Green Red White	44 lm	180 lm	100 lm	Blue Green Red White (RGBW)
