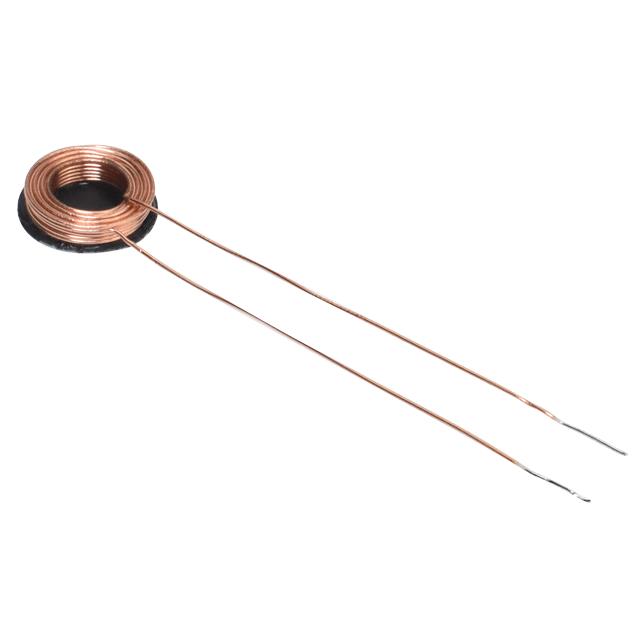

WRSC-7R2K-32
ActiveSignal Transformer
WIRELESS CHARGE COIL 7.2UH 0.80A
WRSC-7R2K-32
ActiveSignal Transformer
WIRELESS CHARGE COIL 7.2UH 0.80A
Description
General part information
WRSC-7R2K-32
1 Coil, 4 Layer 7.2ĄH Wireless Charging Coil Transmitter 440mOhm Max
Technical Specifications
Parameters and characteristics for this part
| Specification | WRSC-7R2K-32 |
|---|---|
| Current - Saturation (Isat) | 1 A |
| Current Rating | 0.5 A |
| DC Resistance (DCR) (Max) | 440 mOhm |
| Function | Transmitter |
| Inductance | 7.2 µH |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Q | 10 |
| Size / Dimension Diameter | 0.24 in |
| Size / Dimension Height | 0.08 in |
| Tolerance | 10 % |
| Type | 1 Coil, 4 Layer |
