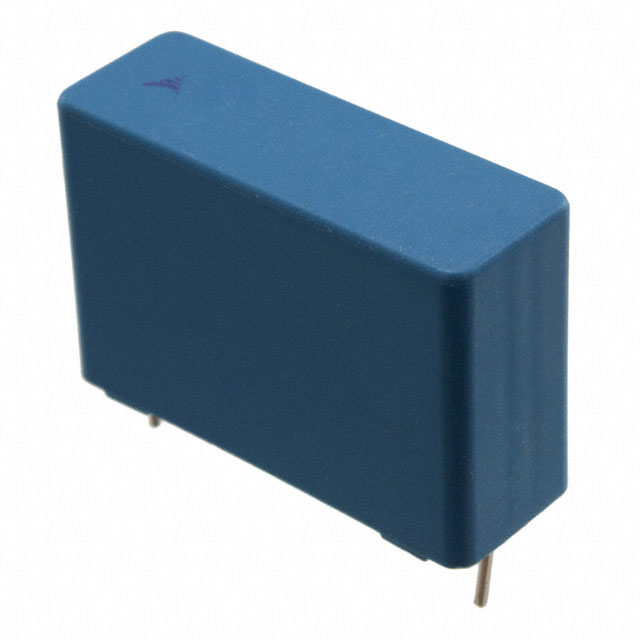

Specification	B32654A6684K189

Applications	DV/DT, DC Link, High Pulse, DC Filtering
Capacitance	0.68 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max)	0.827 in
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-55 °C
Package / Case	Radial
Size / Dimension Length	1.24 in
Size / Dimension Width	0.433 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	250 V
Voltage Rating - DC	630 V
