1717478-1
ActiveTE Connectivity AMP Connectors

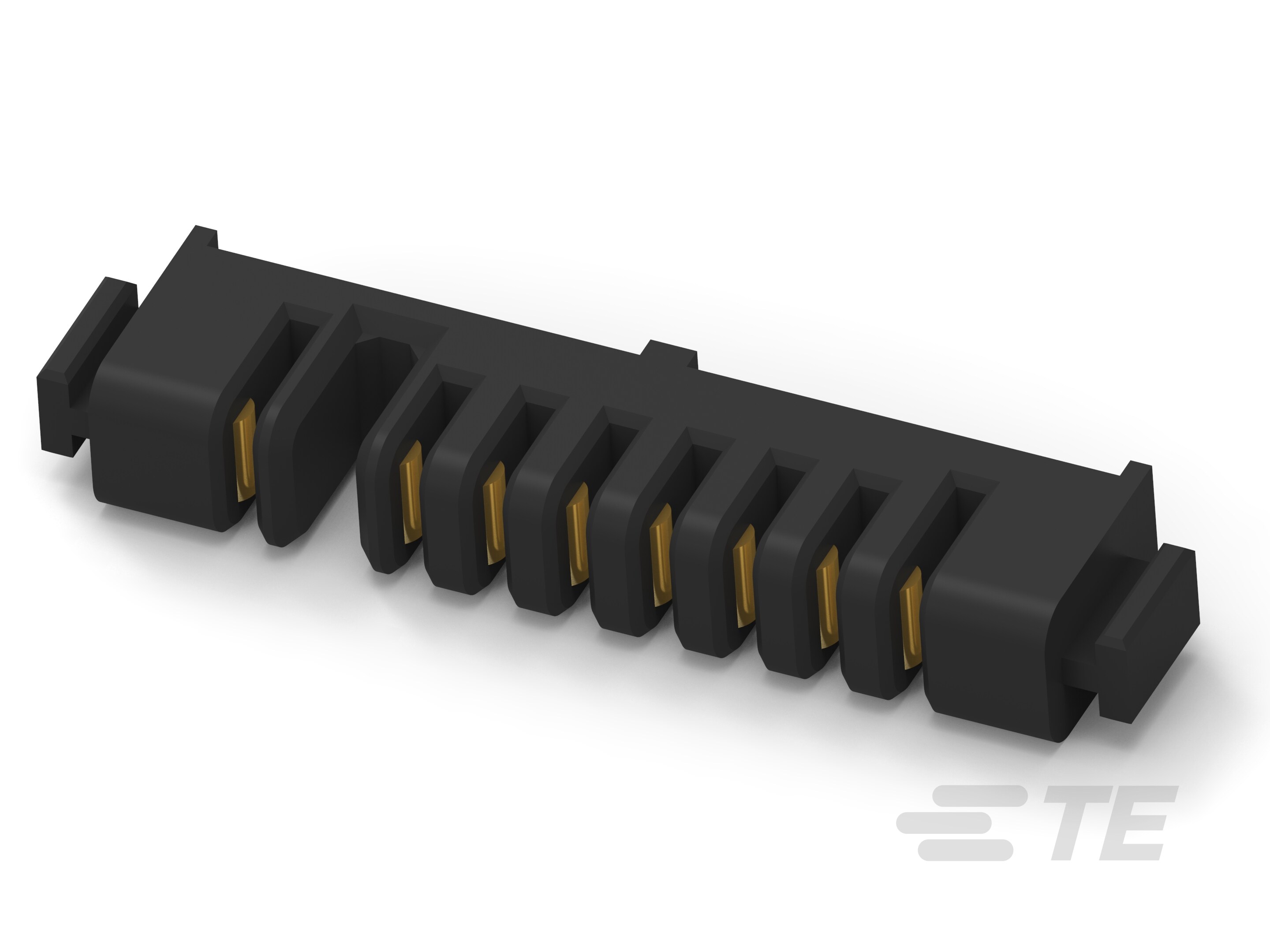

REC. ASSEMBLY 8POS. 2.5MM PITCH BATTERY
1717478-1
ActiveTE Connectivity AMP Connectors
REC. ASSEMBLY 8POS. 2.5MM PITCH BATTERY
Description
General part information
1717478-1
Board-to-Board, 8 Position, 2.5 mm [.098 in] Centerline, Receptacle, 30 VDC, Vertical, Printed Circuit Board, Power & Signal, DC Jack Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 1717478-1 |
|---|---|
| Color | Black |
| Connector Style | Battery |
| Connector Type | Receptacle, Female Blade Sockets |
| Features | Keyed |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Pitch | 0.098 in |
| Termination | Solder |
