XB7EV08BP3
ObsoleteSCHNEIDER ELECTRIC

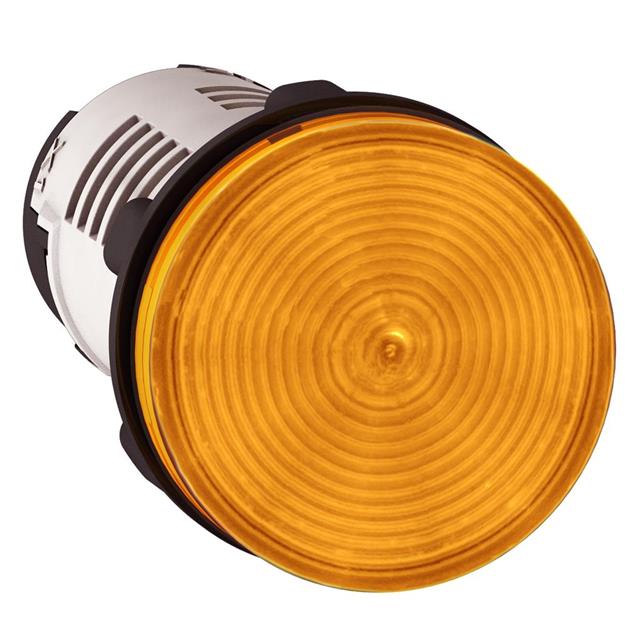

PILOT LIGHT, HARMONY XB7, ROUND
XB7EV08BP3
ObsoleteSCHNEIDER ELECTRIC
PILOT LIGHT, HARMONY XB7, ROUND
Description
General part information
XB7EV08BP3
LED Panel Indicator 24V 20mA ~ 27mA Quick Connect - 0.250" (6.3mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | XB7EV08BP3 |
|---|---|
| Current (Max) | 27 mA |
| Current (Min) | 20 mA |
| Ingress Protection | NEMA 4, IP20, 12, IP65 |
| Lens Color | Orange |
| Lens Diameter | 29 mm |
| Lens Style | Round, Flat Top |
| Panel Cutout Dimension | 0.89 " |
| Panel Cutout Shape | Round |
| Quick Connect Size (0.250") | 0.25 in |
| Ratings | AC, DC |
| Termination Style | Quick Connect |
| Type | LED |
| Voltage | 24 V |
