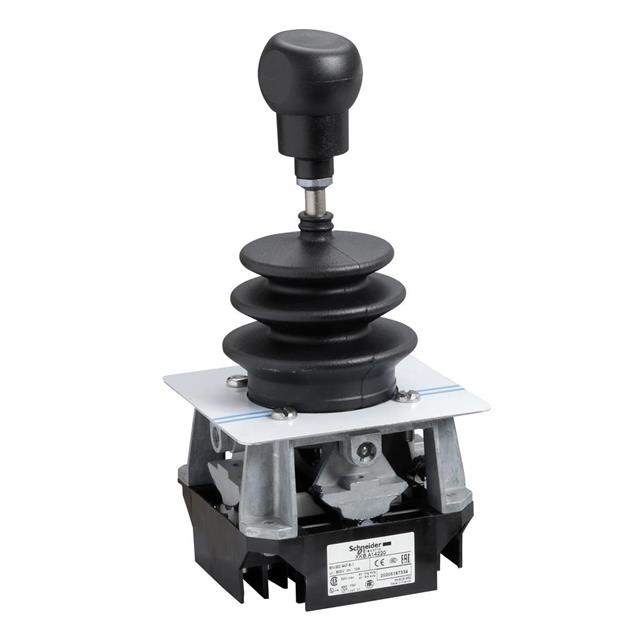

XKBA1422
ObsoleteSCHNEIDER ELECTRIC
SWITCH JOYSTICK COMPLETE
XKBA1422
ObsoleteSCHNEIDER ELECTRIC
SWITCH JOYSTICK COMPLETE
Description
General part information
XKBA1422
Joystick, 2 - Axis Output
Technical Specifications
Parameters and characteristics for this part
| Specification | XKBA1422 |
|---|---|
| Actuator Type | Joystick |
| Ingress Protection Description | Water Resistant, Dust Protected |
| Ingress Protection IP Rating | IP54 |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Switch Function | 4-Way Directional |
| Termination Style | Screw Terminal |
| Type | Joystick, 2 - Axis |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
