B72540V0300K062
NRNDEPCOS - TDK Electronics
VARISTOR 47V 1.2KA 2220
B72540V0300K062
NRNDEPCOS - TDK Electronics
VARISTOR 47V 1.2KA 2220
Description
General part information
B72540V0300K062

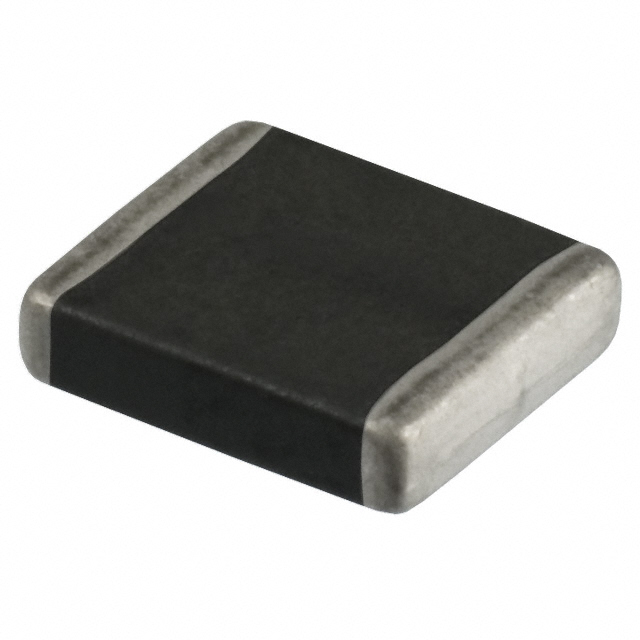

47 V 1.2 kA Varistor 1 Circuit Surface Mount, MLCV 2220 (5750 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | B72540V0300K062 |
|---|---|
| Capacitance | 4000 pF |
| Current - Surge | 1200 A |
| Energy | 12 J |
| Maximum AC Volts | 30 V |
| Maximum DC Voltage | 38 V |
| Mounting Type | MLCV, Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2220 (5750 Metric) |
| Varistor Voltage (Max) | 51.7 V |
| Varistor Voltage (Min) | 42.3 V |
| Varistor Voltage (Typ) | 47 V |
