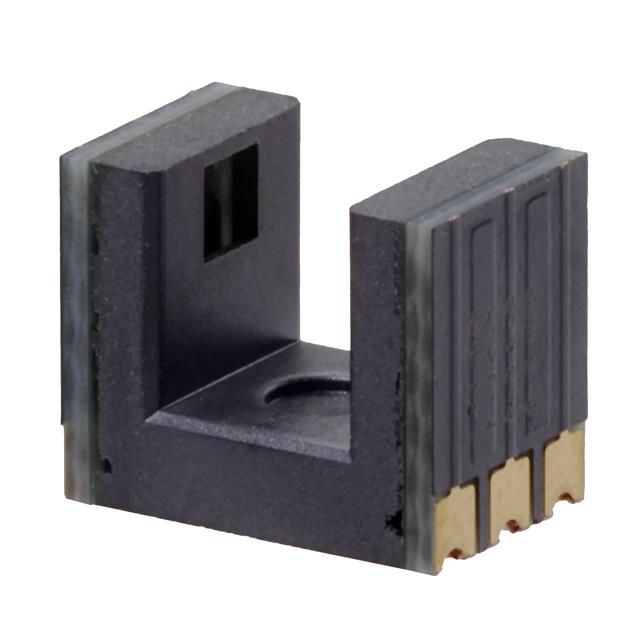

EE-SX4330-1
ActiveOmron Electronics Inc-EMC Div
ULTRA-COMPACT PHOTO IC OUTPUT SE
EE-SX4330-1
ActiveOmron Electronics Inc-EMC Div
ULTRA-COMPACT PHOTO IC OUTPUT SE
Description
General part information
EE-SX4330-1
Optical Sensor Transmissive 0.118" (3mm) Module, No Lead, Slot Type
Technical Specifications
Parameters and characteristics for this part
| Specification | EE-SX4330-1 |
|---|---|
| Current - Supply | 4 mA |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Output Configuration | NPN - Open Collector |
| Package / Case | Slot Type, No Lead, Module |
| Sensing Distance | 0.118 " |
| Sensing Method | Transmissive |
| Voltage - Supply (Maximum) | 7 V |
| Voltage - Supply (Minimum) | 2.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
