Description
General part information

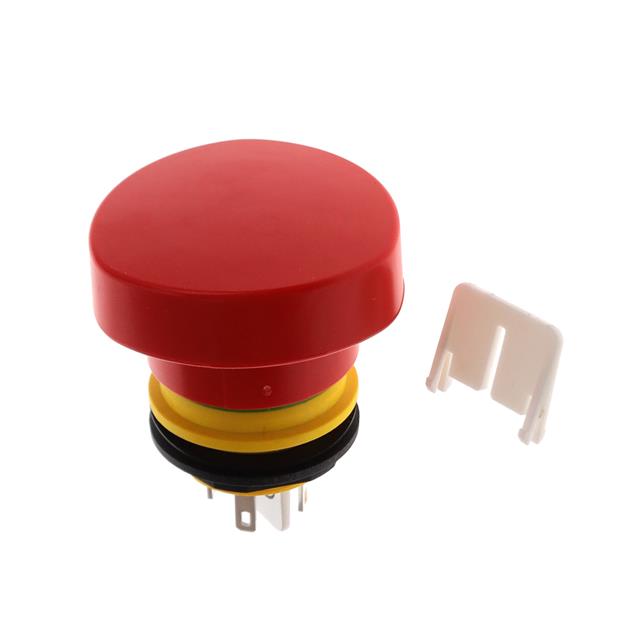

ECAMAF013A
SWITCH E-STOP PULL RESET 3A 120V
Technical Specifications
Parameters and characteristics for this part
| Specification | ECAMAF013A |
|---|---|
| Circuit | DPST-NC |
| Current Rating | 220 mA, 3 A |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -35 °C |
| Panel Cutout Diameter | 22 mm |
| Panel Cutout Shape | Circular |
| Reset Operation | Pull |
| Switch Function | On-Off |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 125 V |
