MAL214251229E3
ActiveVishay Dale
CAP, 22UF, 50V, ALU ELEC, RADIAL ROHS COMPLIANT: YES
MAL214251229E3
ActiveVishay Dale
CAP, 22UF, 50V, ALU ELEC, RADIAL ROHS COMPLIANT: YES
Description
General part information
MAL214251229E3

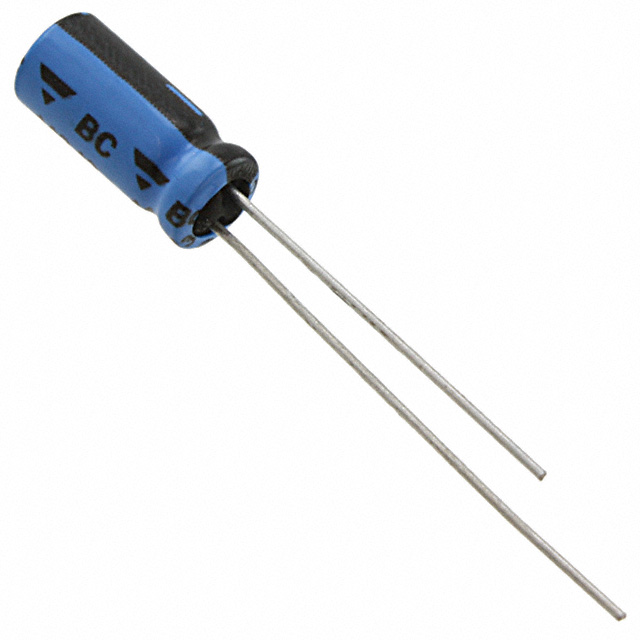

22 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 2500 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL214251229E3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 22 µF |
| Height - Seated (Max) | 0.492 in |
| Lead Spacing | 0.079 in |
| Lifetime | 2500 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Ripple Current | 117 mA |
| Size / Dimension Diameter | 0.197 in |
| Tolerance | 20 % |
| Voltage - Rated | 50 V |
