Description
General part information

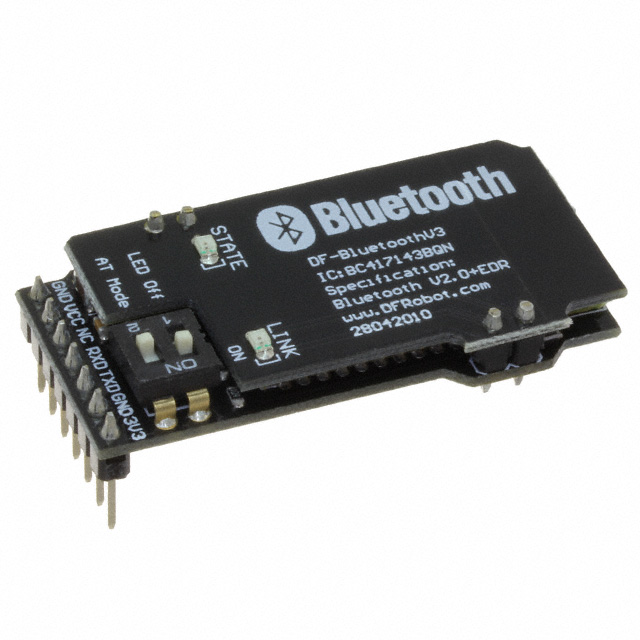

TEL0026
Bluetooth Bluetooth v2.0 +EDR Transceiver Module 2.4GHz Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | TEL0026 |
|---|---|
| Data Rate | 2.1 Mbps |
| Frequency | 2.4 GHz |
| Modulation | GFSK |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | Module |
| Power - Output | 4 dBm |
| Protocol | Bluetooth v2.0 +EDR |
| RF Family/Standard | Bluetooth |
| Sensitivity | -84 dBm |
| Serial Interfaces | USB |
| Utilized IC / Part | nRF24LU1 |
| Voltage - Supply | 3.3 V |
