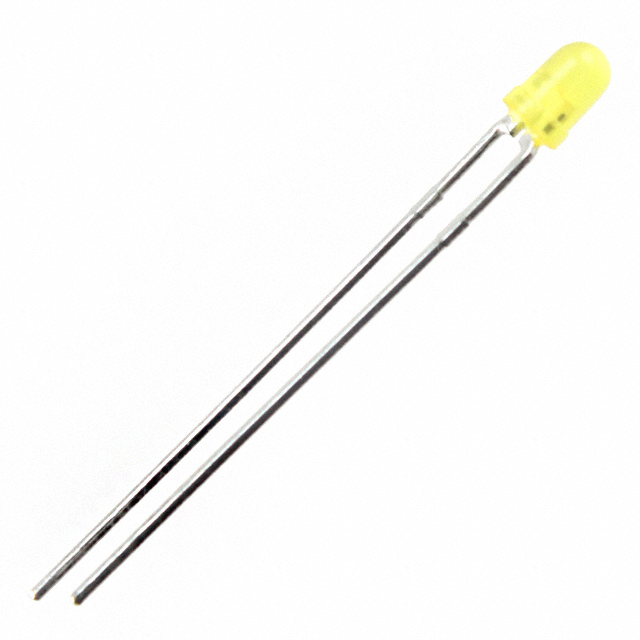

WP710A10LYD
ActiveKingbright
LED YELLOW DIFFUSED T-1 T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WP710A10LYD
ActiveKingbright
LED YELLOW DIFFUSED T-1 T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WP710A10LYD |
|---|---|
| Color | Yellow |
| Configuration | Standard |
| Current - Test | 2 mA |
| Height (Max) [Max] [z] | 5.9 mm |
| Lens Color | Yellow |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 1.5 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension [diameter] | 2.9 mm |
| Supplier Device Package | T-1 |
| Viewing Angle [custom] | 40 ° |
| Voltage - Forward (Vf) (Typ) | 1.85 V |
| Wavelength - Dominant | 588 nm |
| Wavelength - Peak | 590 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.34 | |
| 10 | $ 0.19 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.08 | |||
| 2000 | $ 0.07 | |||
| 5000 | $ 0.07 | |||
| 10000 | $ 0.06 | |||
| 25000 | $ 0.06 | |||
Description
General part information
WP710A10LYD
Yellow 588nm LED Indication - Discrete 1.85V Radial
