Description
General part information

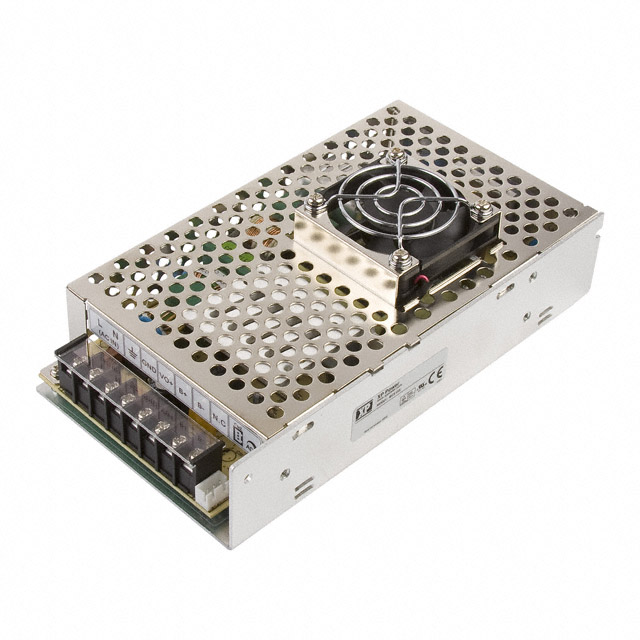

BCS155PS13-C
Enclosed AC DC Converters 2 Output 13.8V 13.8V 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | BCS155PS13-C |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output 1 | 11.2 A |
| Current - Output 2 | 3.88 A |
| Efficiency | 86 % |
| Features | DC Input Capable, Universal Input, Adjustable Output |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Power (Watts) | 155 W |
| Size / Dimension Height | 1.47 in |
| Size / Dimension Length | 5.09 in |
| Size / Dimension Width | 3.83 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 13.8 V |
| Voltage - Output 2 | 13.8 V |
