506WLSN10R7KT150T
ActiveKYOCERA AVX
FIXED IND 10.7UH 150MA 7.1OHM SM
506WLSN10R7KT150T
ActiveKYOCERA AVX
FIXED IND 10.7UH 150MA 7.1OHM SM
Description
General part information
506WLSN10R7KT150T

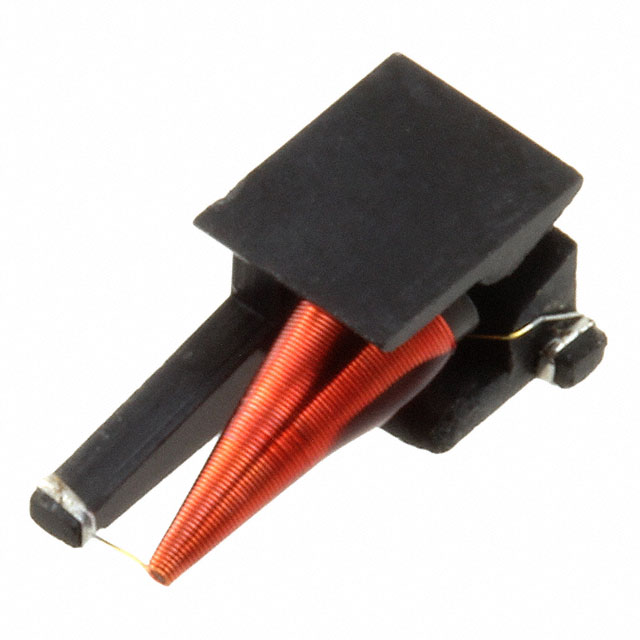

10.7 µH Unshielded Drum Core, Wirewound Inductor 150 mA 7.1Ohm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | 506WLSN10R7KT150T |
|---|---|
| Current Rating | 150 mA |
| DC Resistance (DCR) | 7.1 Ohm |
| Height - Seated (Max) | 0.117 in |
| Inductance | 10.7 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Iron Powder |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.245 in |
| Size / Dimension Width | 0.133 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
