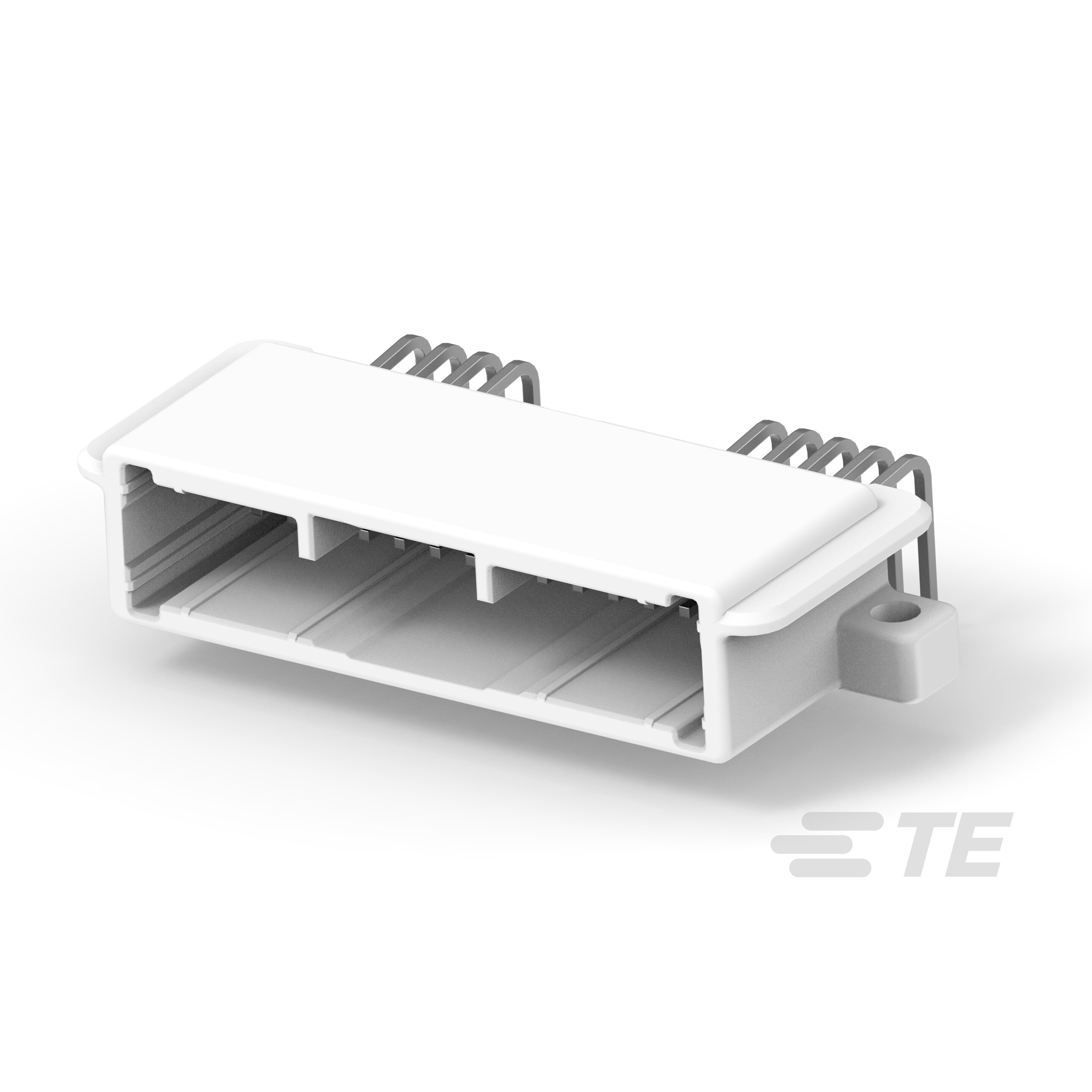

CONN HEADER R/A 24POS 2.2MM
1-1612048-0
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 24POS 2.2MM
Description
General part information
1-1612048-0
CONN HEADER R/A 24POS 2.2MM
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1612048-0 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 0.217 in |
| Contact Length - Post | 0.126 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Features | Mounting Flange |
| Insulation Color | Natural |
| Insulation Height | 0.394 in |
| Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 24 pos |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch - Mating | 0.087 in |
| Row Spacing - Mating | 0.118 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 12 V |
